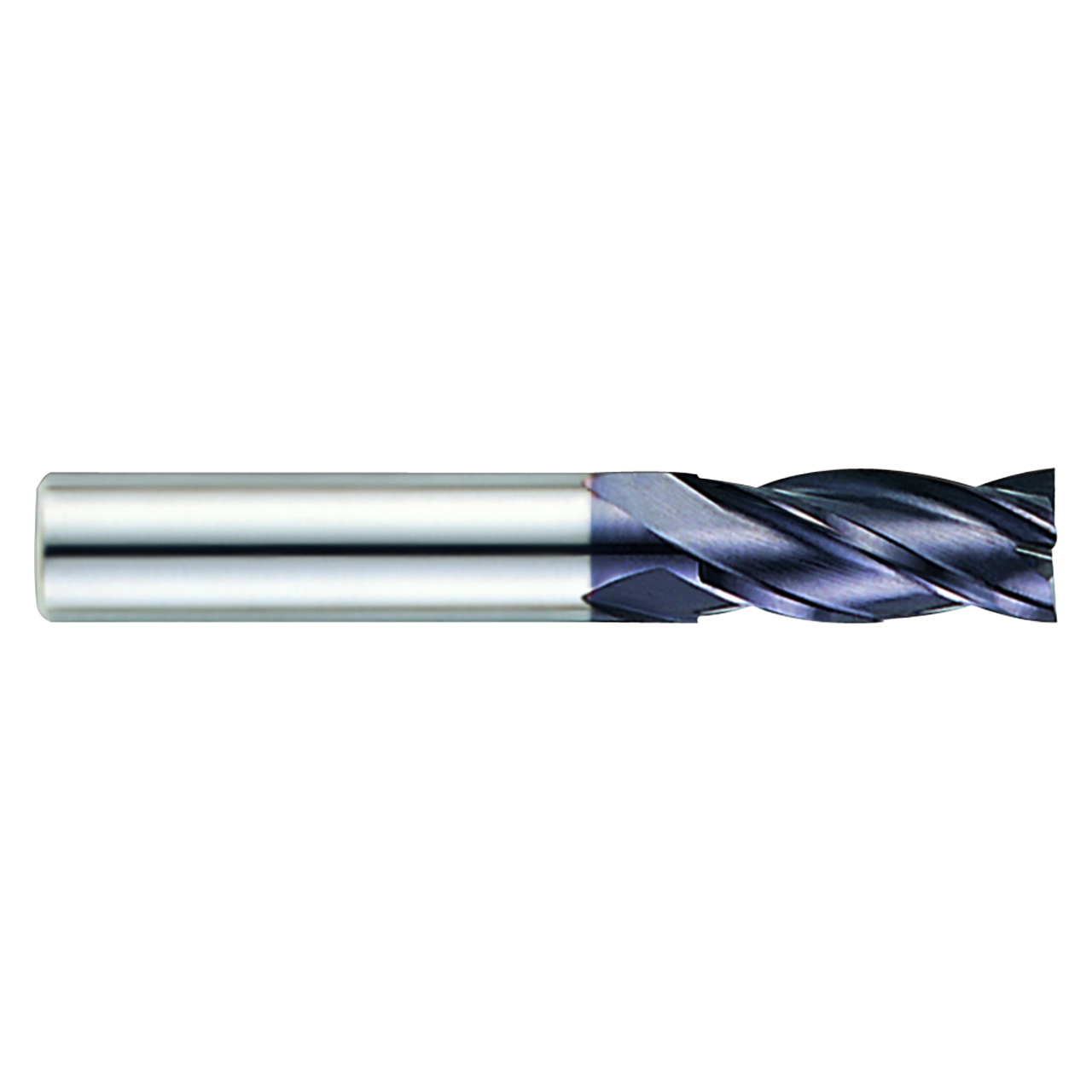

Product Specifications
| EDP Number | EM811025 |
| Diameter (Decimal Inch) | 0.1000" |
| Diameter (Inch) | 6/61" |
| Diameter (mm) | 2.50mm |
| Shank Diameter (Decimal Inch) | 0.1575" |
| Shank Diameter (Inch) | 3/19" |
| Shank Diameter (mm) | 4.00mm |
| Length of Cut (Decimal Inch) | 0.3150" |
| Length of Cut (Inch) | 23/73" |
| Length of Cut (mm) | 8.00mm |
| Overall Length (Decimal Inch) | 1.5748" |
| Overall Length (mm) | 40.00mm |
| Overall Length (Inch) | 1-23/40" |
| Number of Flutes | 4 |
| Series | EM811 |
| Helix Angle (Degree) | 30 Degree |
| Shank Style | Plain |
| Coating | ALTiN |
| Cut Type | Center Cut |
| Length Type | Short |
| Material | Carbide |
| Cutting Direction | Right |
| Application | P |
| Produce Type | Square End Mill |
