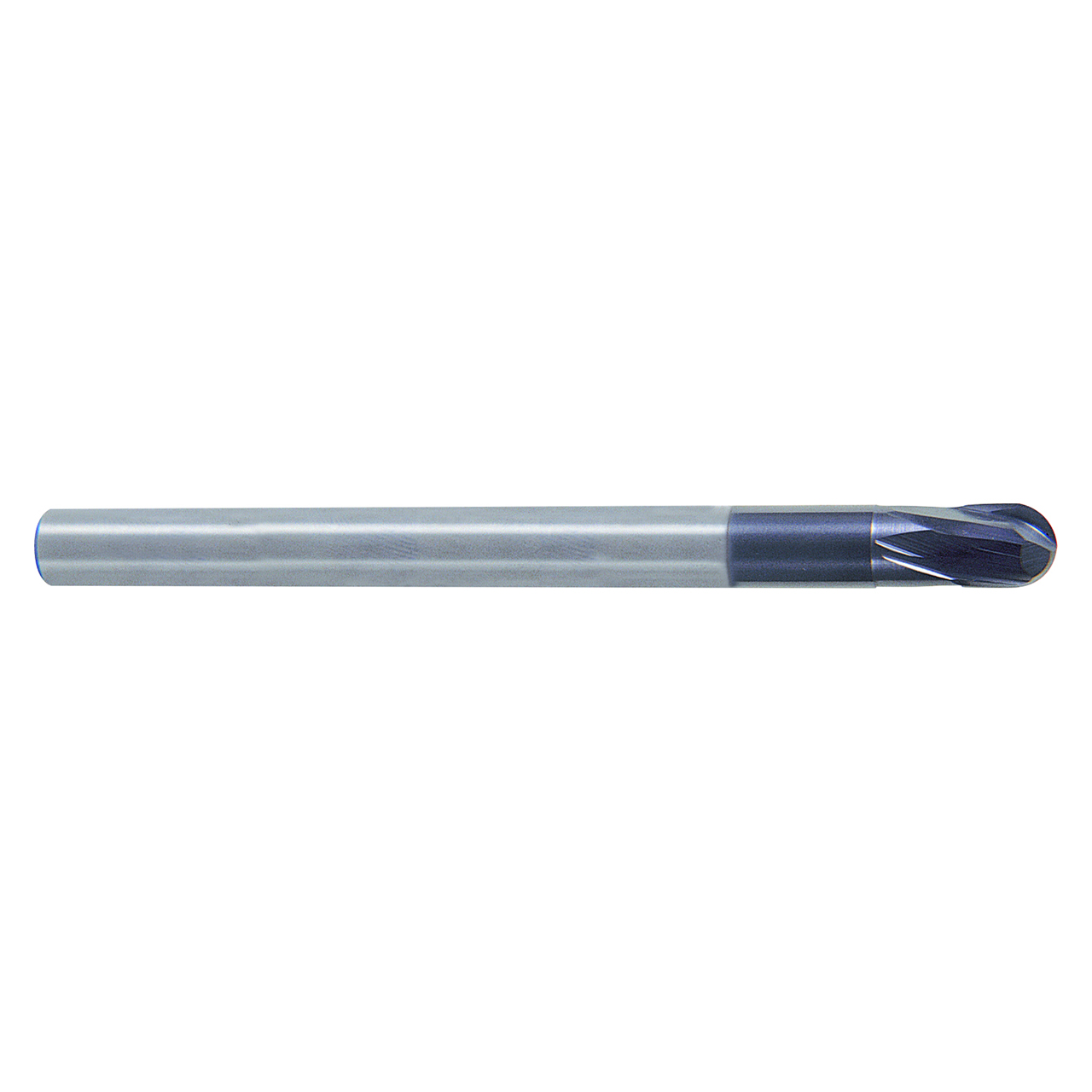

Product Specifications
| EDP Number | EM868010 |
| Diameter (Decimal Inch) | 0.0400" |
| Diameter (Inch) | 3/76" |
| Diameter (mm) | 1.00mm |
| Shank Diameter (Decimal Inch) | 0.1575" |
| Shank Diameter (Inch) | 3/19" |
| Shank Diameter (mm) | 4.00mm |
| Length of Cut (Decimal Inch) | 0.0394" |
| Length of Cut (Inch) | 3/76" |
| Length of Cut (mm) | 1.00mm |
| Length Below Shank (Decimal Inch) | 0.0866" |
| Length Below Shank (Inch) | 2/23" |
| Length Below Shank (mm) | 2.20mm |
| Overall Length (Decimal Inch) | 1.9685" |
| Overall Length (mm) | 50.00mm |
| Ball Nose Radius (Decimal Inch) | 0.0197" |
| Ball Nose Radius (Inch) | 1/51" |
| Overall Length (Inch) | 1-31/32" |
| Neck Diameter (Decimal Inch) | 0.0374" |
| Ball Nose Radius (mm) | 0.50mm |
| Neck Diameter (Inch) | 3/80" |
| Neck Diameter (mm) | 0.95mm |
| Number of Flutes | 2 |
| Series | EM868 |
| Helix Angle (Degree) | 15 Degree |
| Shank Style | Plain |
| Coating | ALTiN |
| Cut Type | Center Cut |
| Length Type | Stub Length |
| Material | Carbide |
| Cutting Direction | Right |
| Application | P,H |
| Produce Type | Ball Nose End Mill |
