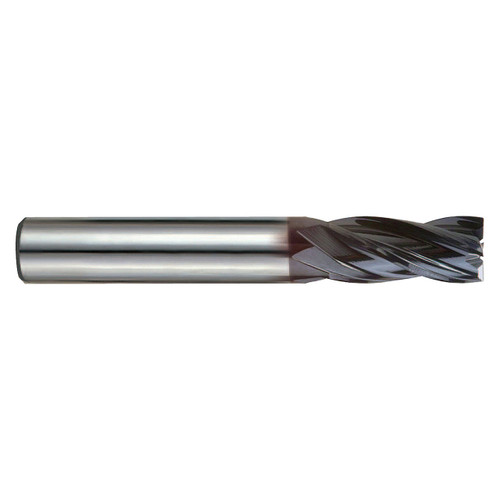

Product Specifications
| # Manufacturer Number | EMB43040 |
| Diameter (Decimal Inch) | 0.1575" |
| Diameter (Inch) | 3/19" |
| Diameter (mm) | 4.00mm |
| Shank Diameter (Decimal Inch) | 0.2362" |
| Shank Diameter (Inch) | 13/55" |
| Shank Diameter (mm) | 6.00mm |
| Length og Cut (Decimal Inch) | 0.3150" |
| Length og Cut (Inch) | 23/73" |
| Length og Cut (mm) | 8.00mm |
| Overall Length (Decimal Inch) | 2.1260" |
| Overall Length (Inch) | 2-1/8" |
| Overall Length (mm) | 54.00mm |
| Corner Radius (Decimal Inch) | 0.0118" |
| Corner Radius (Inch) | 1/85" |
| Corner Radius (mm) | 0.30mm |
| Number of Flutes | 4 |
| Shank Style | Plain |
| Helix Angle | Variable |
| Coating | AlTiN |
| Material | Carbide |
| Cut Type | Center |
| Series | EMB43 |
| Application | PMS |
| Cutting Direction | Right |
| Length Type | Corner Radius |
| Product Type | Corner Radius End Mill |
