Product Specifications
| # Manufacturer Number | F0244 |
| Diameter (Decimal Inch) | 0.1575" |
| Diameter (mm) | 4.00mm |
| Pitch | 0.7 TPI |
| Shank Diameter (Decimal Inch) | 0.1680" |
| Shank Diameter (mm) | 4.27mm |
| Overall Length (Decimal Inch) | 2.4800" |
| Overall Length (mm) | 62.99mm |
| Thread Length (Decimal Inch) | 0.2760" |
| Thread Length (mm) | 7.01mm |
| Square Length (Decimal Inch) | 0.2500" |
| Square Length (mm) | 6.35mm |
| Square Size (Decimal Inch) | 0.1310" |
| Square Size (mm) | 3.33mm |
| Neck Diameter (Decimal Inch) | 0.1190" |
| Neck Diameter (mm) | 0.00mm |
| Useable Length (Decimal Inch) | 0.7680" |
| Useable Length (mm) | 19.51mm |
| Drill Size (Decimal Inch) | 0.1324" |
| Drill Size (mm) | 3.36mm |
| Pitch Limit | D4 |
| Helix Angle (Degree) | 50 Degree |
| Coolant Through | No |
| Shank Type | Square |
| Finish / Coating | Oxide |
| Material | HSSE-V3 |
| Chamfer Length | 2P-3P |
| Chamfer Type | Modified Bottoming |

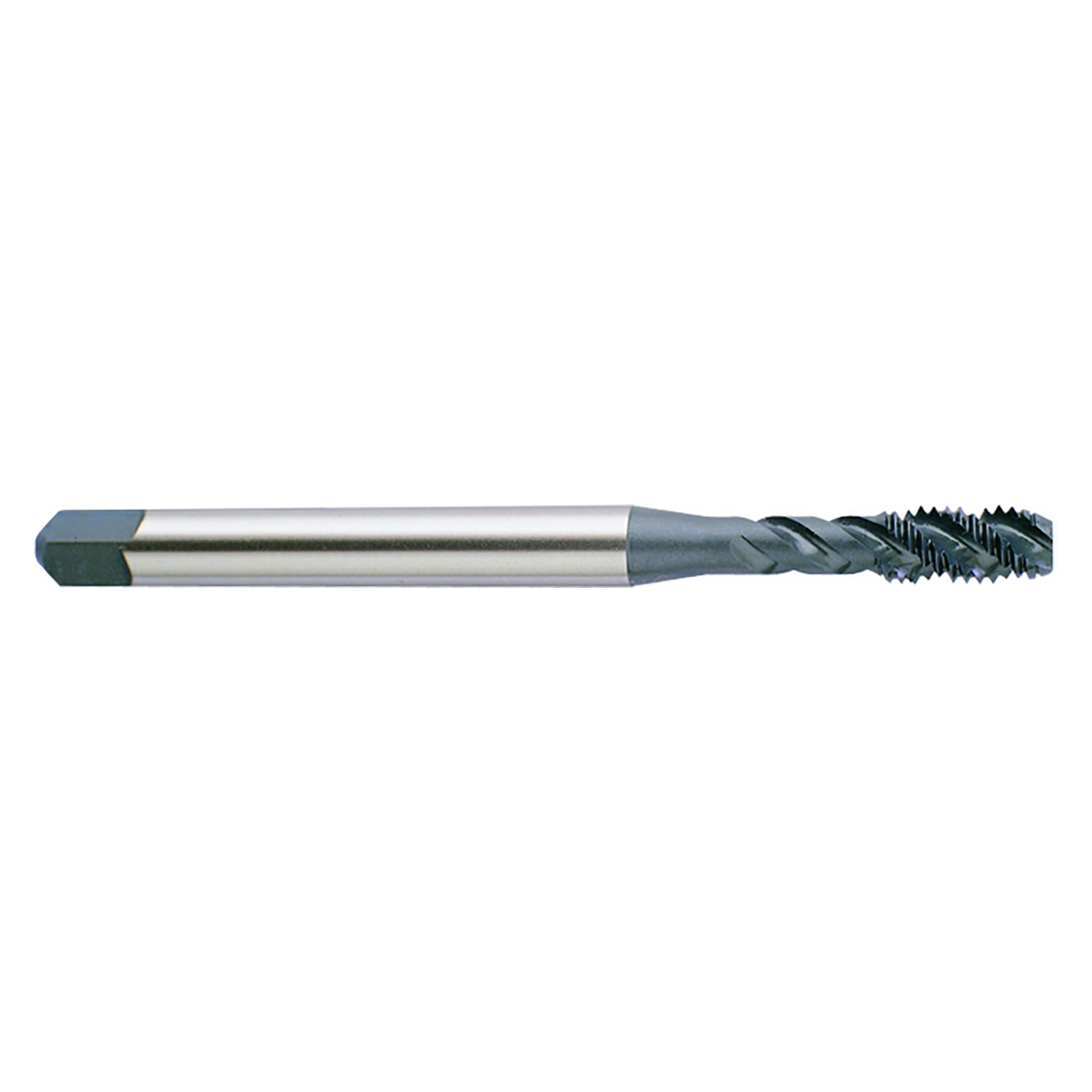

| Product Type | Spiral Flute Thread Tap |
