Product Specifications
| # Manufacturer Number | G8A28002 |
| Diameter (Decimal Inch) | 0.0079" |
| Diameter (Inch) | 1/127" |
| Diameter (mm) | 0.20mm |
| Shank Diameter (Decimal Inch) | 0.1575" |
| Shank Diameter (Inch) | 3/19" |
| Shank Diameter (mm) | 4.00mm |
| Length of Cut (Decimal Inch) | 0.0118" |
| Length of Cut (Inch) | 1/85" |
| Length of Cut (mm) | 0.30mm |
| Overall Length (Decimal Inch) | 1.5748" |
| Overall-Length-(Inch) | 1-23/40" |
| Overall Length (mm) | 40.00mm |
| Ball Nose Radius (Decimal Inch) | 0.0039" |
| Ball Nose Radius (Inch) | 1/10" |
| Ball Nose Radius (mm) | 0.10mm |
| Helix Angle (Degree) | 30 Degree |
| Number of Flute | 2 |
| Coating | Blue |
| Material | Carbide |
| Cut Type | Center Cutting |
| Cutting Direction | Right |
| Shank Style | Plain |

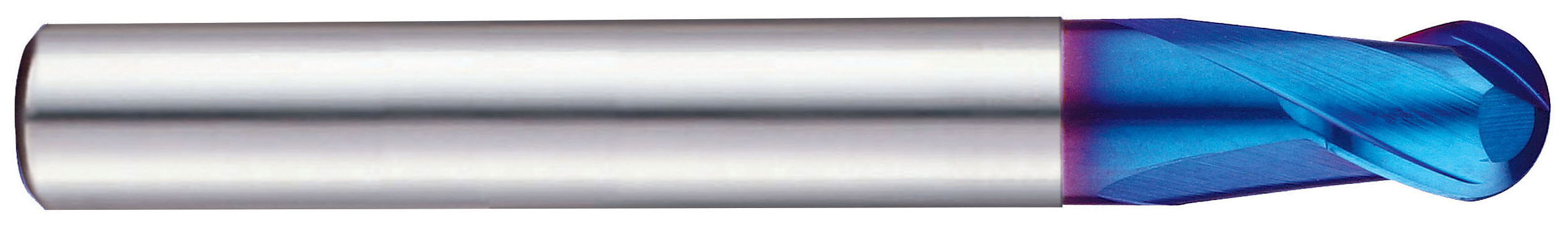

| Product Type | Ball Nose End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
1/127"
Mill Diameter (Decimal Inch):
0.0079"
Mill Diameter (mm):
0.20mm
Number of Flutes:
2
Length of Cut (Inch):
1/85"
Length of Cut (Decimal Inch):
0.0118"
Length of Cut (mm):
0.30mm
Material:
Carbide
Shank Type:
Plain
Overall Length (Inch):
1 23/40"
Overall Length (Decimal Inch):
1.5748"
Overall Length (mm):
40.00mm
Shank Diameter (Inch):
3/19"
Shank Diameter (Decimal Inch):
0.1575"
Shank Diameter (mm):
4.00mm
Finish/Coating:
Blue
Cutting Direction:
Right
Helix Angle (Degree):
30 Degree
Center Cutting (yes/no):
Yes
Application:
P,H
