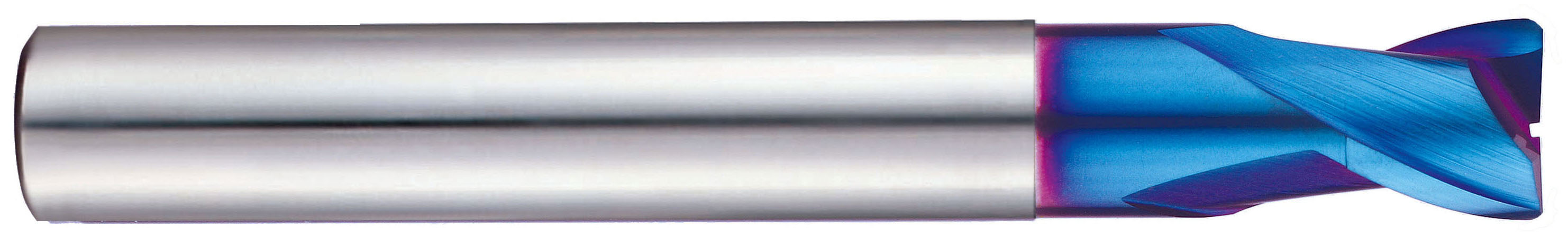

Product Specifications
| # Manufacturer Number | G8A36160 |
| Diameter (Decimal Inch) | 0.6299" |
| Diameter (Inch) | 17/27" |
| Diameter (mm) | 16.00mm |
| Shank Diameter (Decimal Inch) | 0.6299" |
| Shank Diameter (Inch) | 17/27" |
| Shank Diameter (mm) | 16.00mm |
| Length of Cut (Decimal Inch) | 0.7087" |
| Length of Cut (Inch) | 17/24" |
| Length of Cut (mm) | 18.00mm |
| Overall Length (Decimal Inch) | 3.5433" |
| Overall-Length-(Inch) | 3-25/46" |
| Overall Length (mm) | 90.00mm |
| Corner Radius (Decimal Inch) | 0.0118" |
| Corner Radius (Inch) | 1/85" |
| Corner Radius (mm) | 0.30mm |
| LBS (Decimal Inch) | 1.4961" |
| LBS-(Inch) | 1-1/2" |
| LBS (mm) | 38.00mm |
| Neck (Decimal Inch) | 0.6181" |
| Neck (Inch) | 34/55" |
| Neck (mm) | 15.70mm |
| Helix Angle (Degree) | 30 Degree |
| Number of Flute | 2 |
| Coating | Blue |
| Material | Carbide |
| Cut Type | Center Cutting |
| Cutting Direction | Right |
| Shank Style | Plain |
| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
17/27"
Mill Diameter (Decimal Inch):
0.6299"
Mill Diameter (mm):
16.00mm
Number of Flutes:
2
Corner Radius (Inch):
1/85"
Corner Radius (Decimal Inch):
0.0118"
Corner Radius (mm):
0.30mm
Length of Cut (Inch):
17/24"
Length of Cut (Decimal Inch):
0.7087"
Length of Cut (mm):
18.00mm
Shank Type:
Plain
Material:
Carbide
Finish/Coating:
Blue
Shank Diameter (Inch):
17/27"
Shank Diameter (Decimal Inch):
0.6299"
Shank Diameter (mm):
16.00mm
Application:
P,H
Overall Length (Inch):
3 25/46"
Overall Length (Decimal Inch):
3.5433"
Overall Length (mm):
90.00mm
Cutting Direction:
Right
interval quantity:
1
