Product Specifications
| # Manufacturer Number | G8A37020 |
| Diameter (Decimal Inch) | 0.0787" |
| Diameter (Inch) | 3/38" |
| Diameter (mm) | 2.00mm |
| Shank Diameter (Decimal Inch) | 0.1181" |
| Shank Diameter (Inch) | 2/17" |
| Shank Diameter (mm) | 3.00mm |
| Length of Cut (Decimal Inch) | 0.1181" |
| Length of Cut (Inch) | 2/17" |
| Length of Cut (mm) | 3.00mm |
| Overall Length (Decimal Inch) | 1.5748" |
| Overall-Length-(Inch) | 1-23/40" |
| Overall Length (mm) | 40.00mm |
| Corner Radius (Decimal Inch) | 0.0039" |
| Corner Radius (Inch) | 1/254" |
| Corner Radius (mm) | 0.10mm |
| LBS (Decimal Inch) | 0.2362" |
| LBS-(Inch) | 13/55" |
| LBS (mm) | 6.00mm |
| Neck (Decimal Inch) | 0.0768" |
| Neck (Inch) | 1/13" |
| Neck (mm) | 1.95mm |
| Helix Angle (Degree) | 30 Degree |
| Number of Flute | 4 |
| Coating | Blue |
| Material | Carbide |
| Cut Type | Center Cutting |
| Cutting Direction | Right |
| Shank Style | Plain |

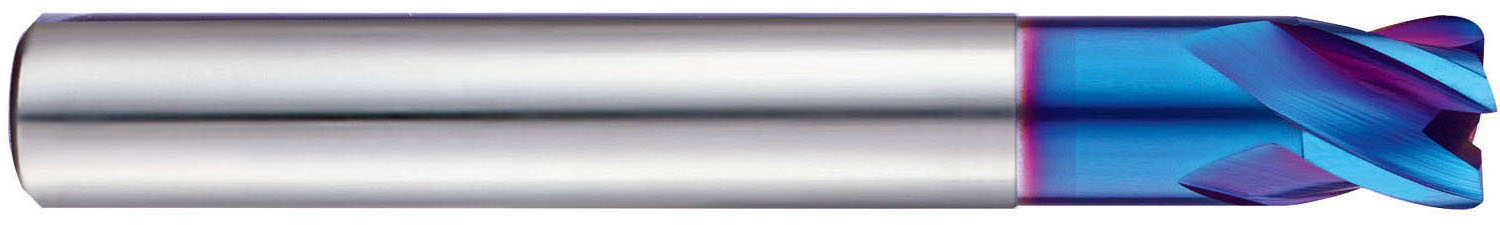

| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
3/38"
Mill Diameter (Decimal Inch):
0.0787"
Mill Diameter (mm):
2.00mm
Number of Flutes:
4
Corner Radius (Inch):
1/254"
Corner Radius (Decimal Inch):
0.0039"
Corner Radius (mm):
0.10mm
Length of Cut (Inch):
2/17"
Length of Cut (Decimal Inch):
0.1181"
Length of Cut (mm):
3.00mm
Shank Type:
Plain
Material:
Carbide
Finish/Coating:
Blue
Shank Diameter (Inch):
2/17"
Shank Diameter (Decimal Inch):
0.1181"
Shank Diameter (mm):
3.00mm
Application:
P,H
Overall Length (Inch):
1 23/40"
Overall Length (Decimal Inch):
1.5748"
Overall Length (mm):
40.00mm
Cutting Direction:
Right
