Product Specifications
| # Manufacturer Number | G8A37120 |
| Diameter (Decimal Inch) | 0.4724" |
| Diameter (Inch) | 43/91" |
| Diameter (mm) | 12.00mm |
| Shank Diameter (Decimal Inch) | 0.4724" |
| Shank Diameter (Inch) | 43/91" |
| Shank Diameter (mm) | 12.00mm |
| Length of Cut (Decimal Inch) | 0.5906" |
| Length of Cut (Inch) | 13/22" |
| Length of Cut (mm) | 15.00mm |
| Overall Length (Decimal Inch) | 2.9528" |
| Overall-Length-(Inch) | 2-20/21" |
| Overall Length (mm) | 75.00mm |
| Corner Radius (Decimal Inch) | 0.0118" |
| Corner Radius (Inch) | 1/85" |
| Corner Radius (mm) | 0.30mm |
| LBS (Decimal Inch) | 1.1811" |
| LBS-(Inch) | 1-2/11" |
| LBS (mm) | 30.00mm |
| Neck (Decimal Inch) | 0.4606" |
| Neck (Inch) | 41/89" |
| Neck (mm) | 11.70mm |
| Helix Angle (Degree) | 30 Degree |
| Number of Flute | 4 |
| Coating | Blue |
| Material | Carbide |
| Cut Type | Center Cutting |
| Cutting Direction | Right |
| Shank Style | Plain |

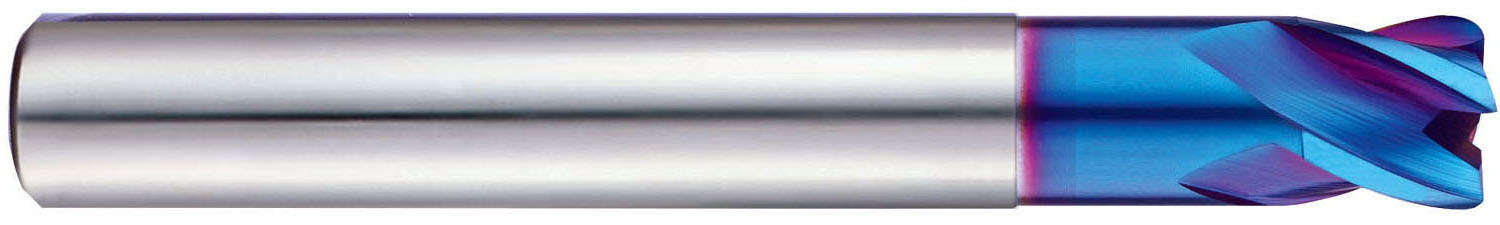

| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
43/91"
Mill Diameter (Decimal Inch):
0.4724"
Mill Diameter (mm):
12.00mm
Number of Flutes:
4
Corner Radius (Inch):
1/85"
Corner Radius (Decimal Inch):
0.0118"
Corner Radius (mm):
0.30mm
Length of Cut (Inch):
13/22"
Length of Cut (Decimal Inch):
0.5906"
Length of Cut (mm):
15.00mm
Shank Type:
Plain
Material:
Carbide
Finish/Coating:
Blue
Shank Diameter (Inch):
43/91"
Shank Diameter (Decimal Inch):
0.4724"
Shank Diameter (mm):
12.00mm
Application:
P,H
Overall Length (Inch):
2 20/21"
Overall Length (Decimal Inch):
2.9528"
Overall Length (mm):
75.00mm
Cutting Direction:
Right
