Product Specifications
| # Manufacturer Number | G8A38030 |
| Diameter (Decimal Inch) | 0.1181" |
| Diameter (Inch) | 2/17" |
| Diameter (mm) | 3.00mm |
| Shank Diameter (Decimal Inch) | 0.2362" |
| Shank Diameter (Inch) | 13/55" |
| Shank Diameter (mm) | 6.00mm |
| Length of Cut (Decimal Inch) | 0.1181" |
| Length of Cut (Inch) | 2/17" |
| Length of Cut (mm) | 3.00mm |
| Overall Length (Decimal Inch) | 2.3622" |
| Overall-Length-(Inch) | 2-25/69" |
| Overall Length (mm) | 60.00mm |
| LBS (Decimal Inch) | 0.2362" |
| LBS-(Inch) | 13/55" |
| LBS (mm) | 6.00mm |
| Ball Nose Radius (Decimal Inch) | 0.0591" |
| Ball Nose Radius (Inch) | 1/17" |
| Ball Nose Radius (mm) | 1.50mm |
| Neck (Decimal Inch) | 0.1122" |
| Neck (Inch) | 11/98" |
| Neck (mm) | 2.85mm |
| Helix Angle (Degree) | 30 Degree |
| Number of Flute | 2 |
| Coating | Blue |
| Material | Carbide |
| Cut Type | Center Cutting |
| Cutting Direction | Right |
| Shank Style | Plain |

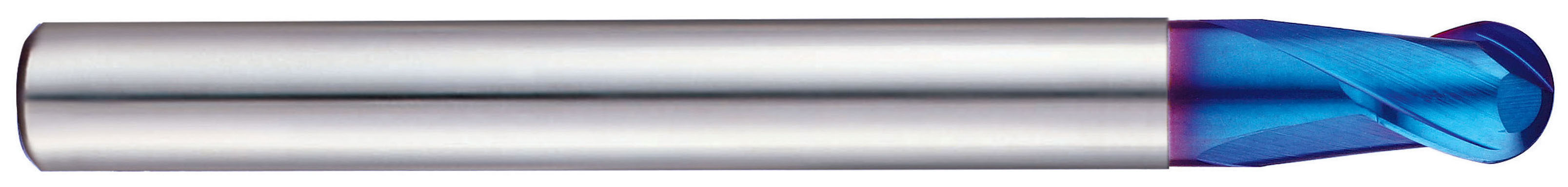

| Product Type | Ball Nose End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
2/17"
Mill Diameter (Decimal Inch):
0.1181"
Mill Diameter (mm):
3.00mm
Number of Flutes:
2
Length of Cut (Inch):
2/17"
Length of Cut (Decimal Inch):
0.1181"
Length of Cut (mm):
3.00mm
Material:
Carbide
Shank Type:
Plain
Overall Length (Inch):
2 25/69"
Overall Length (Decimal Inch):
2.3622"
Overall Length (mm):
60.00mm
Shank Diameter (Inch):
13/55"
Shank Diameter (Decimal Inch):
0.2362"
Shank Diameter (mm):
6.00mm
Finish/Coating:
Blue
Cutting Direction:
Right
Helix Angle (Degree):
30 Degree
Center Cutting (yes/no):
Yes
Application:
P,H
