Product Specifications
| # Manufacturer Number | G8A39902 |
| Diameter (Decimal Inch) | 0.3150" |
| Diameter (Inch) | 23/73" |
| Diameter (mm) | 8.00mm |
| Shank Diameter (Decimal Inch) | 0.3150" |
| Shank Diameter (Inch) | 23/73" |
| Shank Diameter (mm) | 8.00mm |
| Length of Cut (Decimal Inch) | 0.7480" |
| Length of Cut (Inch) | 3/4" |
| Length of Cut (mm) | 19.00mm |
| Overall Length (Decimal Inch) | 3.5433" |
| Overall-Length-(Inch) | 3-25/46" |
| Overall Length (mm) | 90.00mm |
| Corner Radius (Decimal Inch) | 0.0197" |
| Corner Radius (Inch) | 1/51" |
| Corner Radius (mm) | 0.50mm |
| Helix Angle (Degree) | 45 Degree |
| Number of Flute | 6 |
| Coating | Blue |
| Material | Carbide |
| Cut Type | Center Cutting |
| Cutting Direction | Right |
| Shank Style | Plain |

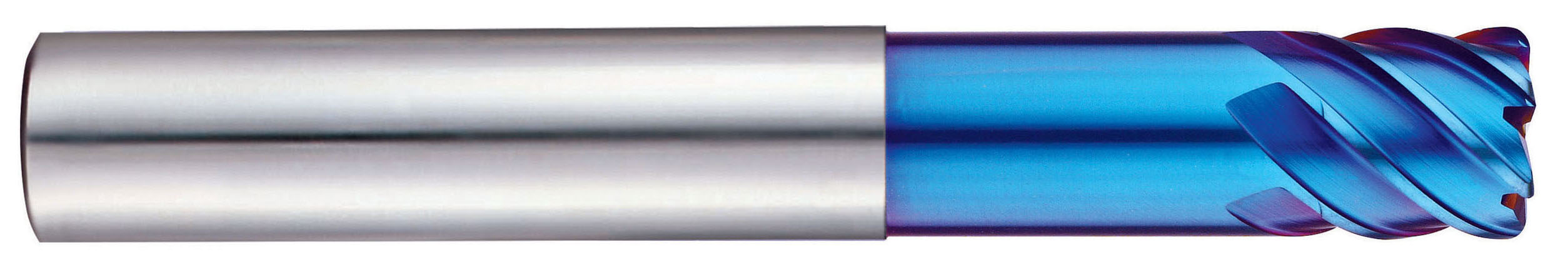

| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
23/73"
Mill Diameter (Decimal Inch):
0.3150"
Mill Diameter (mm):
8.00mm
Number of Flutes:
6
Corner Radius (Inch):
1/51"
Corner Radius (Decimal Inch):
0.0197"
Corner Radius (mm):
0.50mm
Length of Cut (Inch):
3/4"
Length of Cut (Decimal Inch):
0.7480"
Length of Cut (mm):
19.00mm
Shank Type:
Plain
Material:
Carbide
Finish/Coating:
Blue
Shank Diameter (Inch):
23/73"
Shank Diameter (Decimal Inch):
0.3150"
Shank Diameter (mm):
8.00mm
Application:
P,H
Overall Length (Inch):
3 25/46"
Overall Length (Decimal Inch):
3.5433"
Overall Length (mm):
90.00mm
Cutting Direction:
Right
