Product Specifications

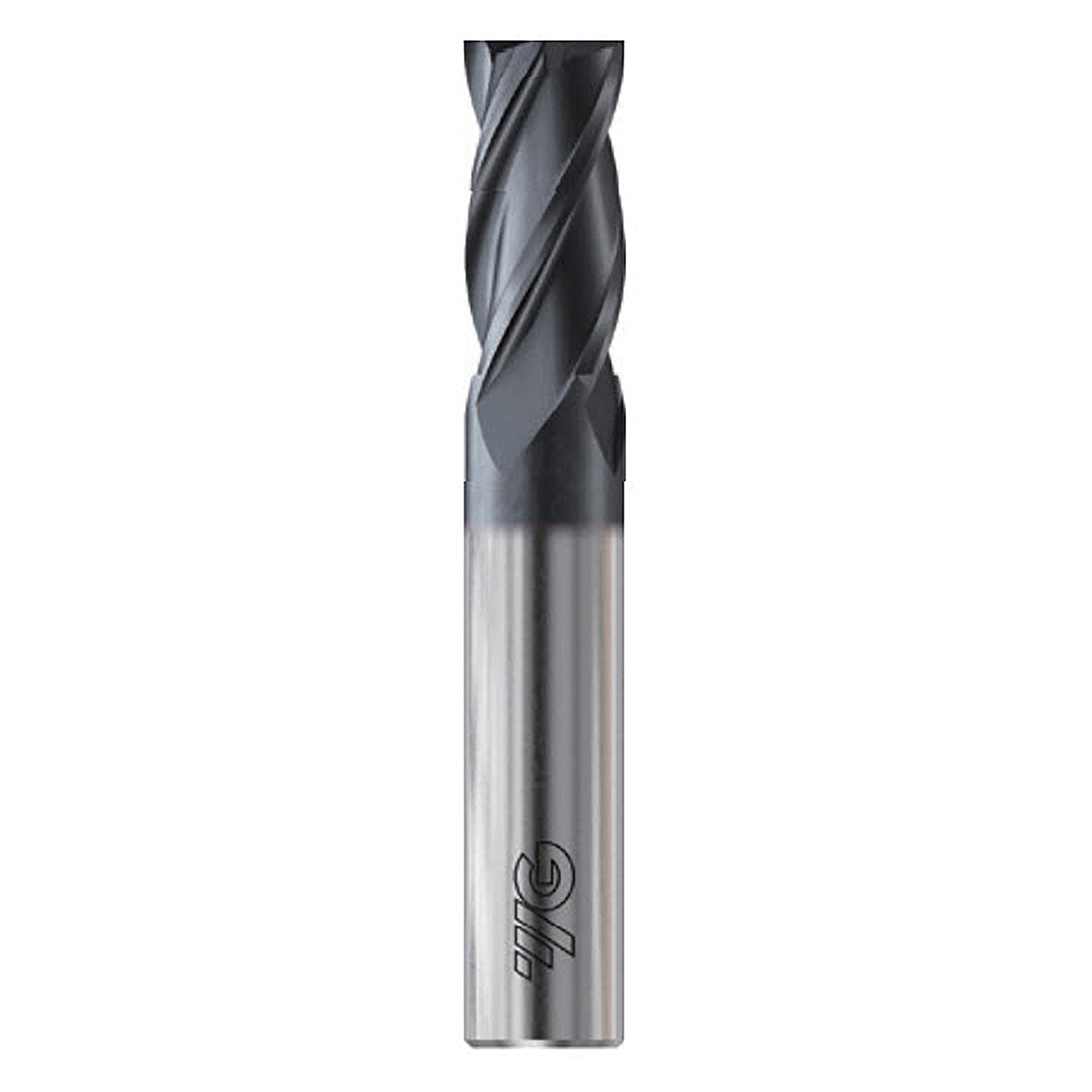

| Manufacturer Part Number | G9H89090N |
| Mill Diameter (Inch) | 28/79" |
| Mill Diameter (Decimal Inch) | 0.3543" |
| Mill Diameter (mm) | 9.00mm |
| Shank Diameter (Inch) | 37/94" |
| Shank Diameter (Decimal Inch) | 0.3937" |
| Shank Diameter (mm) | 10.00mm |
| Length of Cut (Inch) | 13/15" |
| Length of Cut (Decimal Inch) | 0.8661" |
| Length of Cut (mm) | 22.00mm |
| Overall Length (Inch) | 2 12/25" |
| Overall Length (Decimal Inch) | 2.4803" |
| Overall Length (mm) | 63.00mm |
| Helix | 30 Degree |
| Series | G9H89 |
| Coated | X-Coating |
| Material | Carbide |
| Type | Square Single End |
| Corner Type | Square |
