Product Specifications

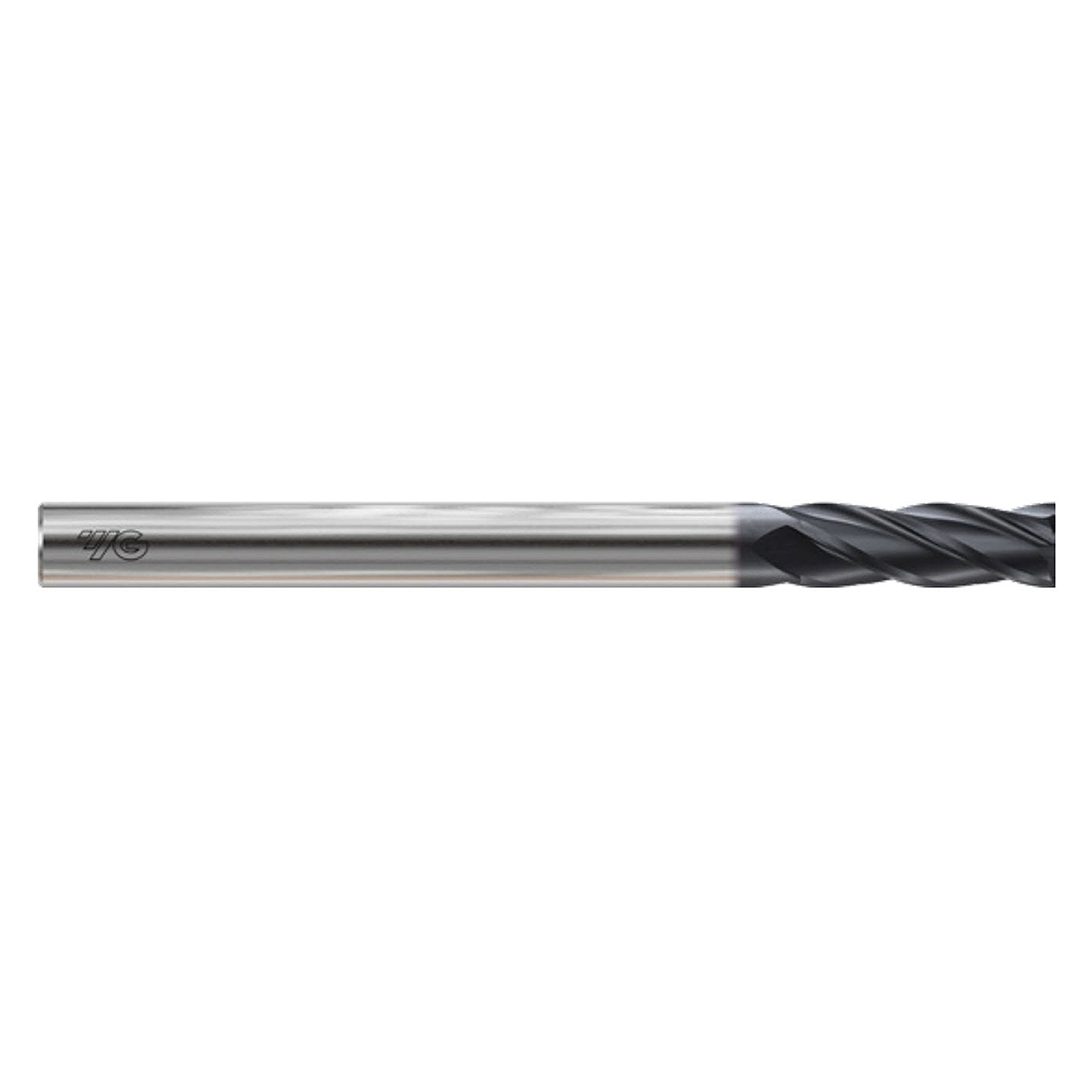

| Manufacturer Part Number | G9H94010N |
| Mill Diameter (Inch) | 5/32" |
| Mill Diameter (Decimal Inch) | 0.1563" |
| Mill Diameter (mm) | 3.97mm |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Shank Diameter (mm) | 4.76mm |
| Length of Cut (Inch) | 1-1/8" |
| Length of Cut (Decimal Inch) | 1.1250" |
| Length of Cut (mm) | 28.58mm |
| Overall Length (Inch) | 3" |
| Overall Length (Decimal Inch) | 3.0000" |
| Overall Length (mm) | 76.20mm |
| Helix | 30 Degree |
| Series | G9H94 |
| Coated | X-Coating |
| Material | Carbide |
| Type | Square Single End |
| Corner Type | Square |
