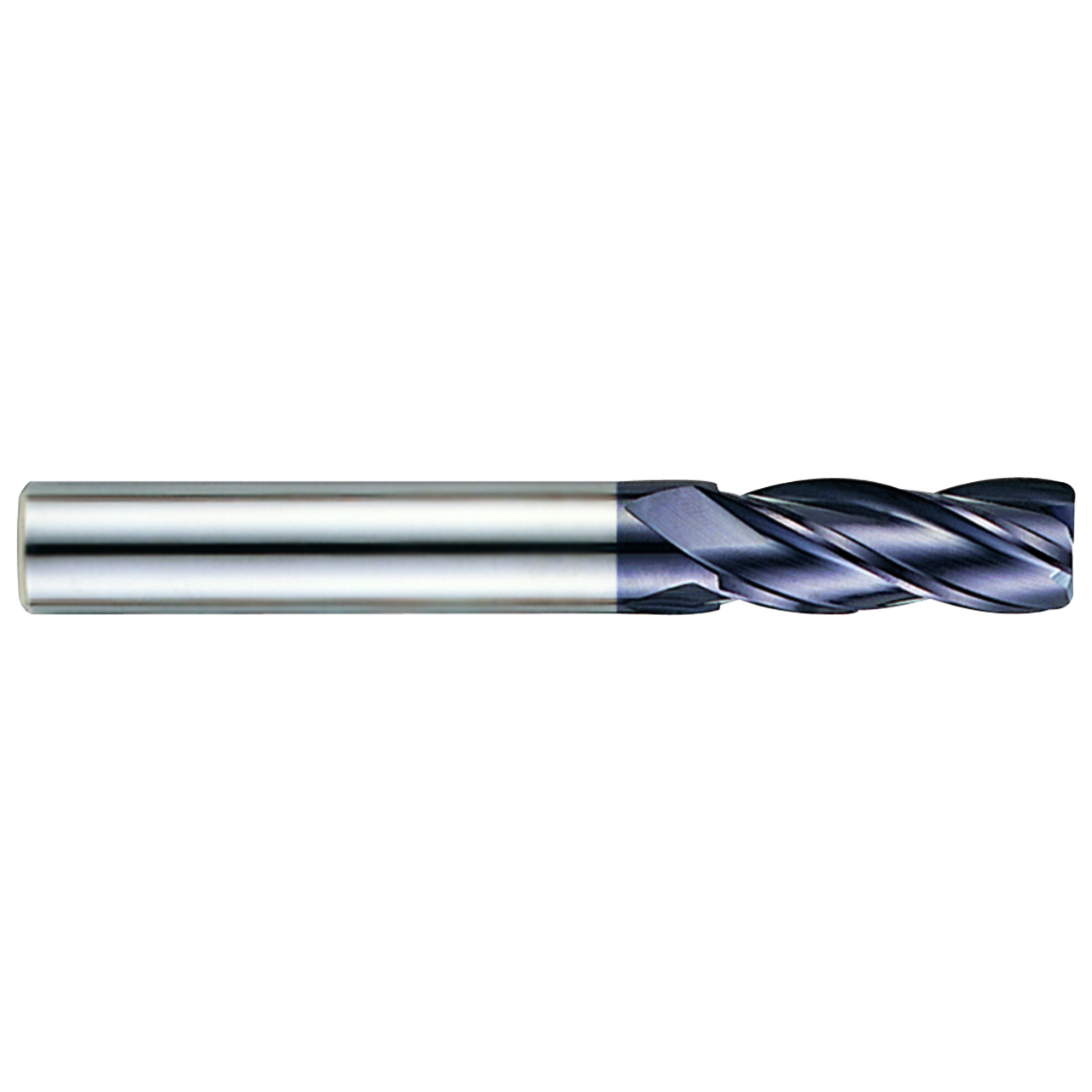

YG1 GM212016 | 1/4" Diameter x 1/4" Shank x 1-1/8" LOC x 3" OAL x 9/100" Radius 4 Flute Carbide Corner Radius End Mill

$30.95
Brand:
YG1
Mill Diameter (Inch):
1/4"
Mill Diameter (Decimal Inch):
0.2500"
Mill Diameter (mm):
6.35mm
Number of Flutes:
4
Length of Cut (Inch):
1-1/8"
Length of Cut (Decimal Inch):
1.1250"
Length of Cut (mm):
28.58mm
Material:
Carbide
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.20mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Corner Radius (Inch):
9/100"
Corner Radius (Decimal Inch):
0.0900"
Corner Radius (mm):
2.29mm
SKU:
25175964
Weight:
1.23 LBS
Shipping:
Calculated at Checkout

Product Specifications
Manufacturer Part NumberGM212016
Mill Diameter (Inch)1/4"
Mill Diameter (Decimal Inch)0.2500"
Mill Diameter (mm)6.35mm
Shank Diameter (Inch)1/4"
Shank Diameter (Decimal Inch)0.2500"
Shank Diameter (mm)6.35mm
Length of Cut (Inch)1-1/8"
Length of Cut (Decimal Inch)1.1250"
Length of Cut (mm)28.58mm
Overall Length (Inch)3"
Overall Length (Decimal Inch)3.0000"
Overall Length (mm)76.20mm
Corner Radius (Inch)9/100"
Corner Radius (Decimal Inch)0.0900"
Corner Radius (mm)2.29mm
Helix (Degree)30 Degree
Number of Flute4
Shank TypePlain
MaterialCarbide
Product TypeCorner Radius End Mill
