Product Specifications
| Manufacturer Part Number | GM649020 |
| Mill Diameter (Inch) | 5/16" |
| Mill Diameter (Decimal Inch) | 0.3125" |
| Mill Diameter (mm) | 7.94mm |
| Shank Diameter (Inch) | 5/16" |
| Shank Diameter (Decimal Inch) | 0.3125" |
| Shank Diameter (mm) | 7.94mm |
| Length of Cut (Inch) | 13/16" |
| Length of Cut (Decimal Inch) | 0.8125" |
| Length of Cut (mm) | 20.64mm |
| Overall Length (Inch) | 3" |
| Overall Length (Decimal Inch) | 3.0000" |
| Overall Length (mm) | 76.20mm |
| Corner Radius (Inch) | 1/50" |
| Corner Radius (Decimal Inch) | 0.0200" |
| Corner Radius (mm) | 0.51mm |
| Helix (Degree) | 30 Degree |
| Number of Flute | 4 |
| Shank Type | Plain |
| Material | Carbide |

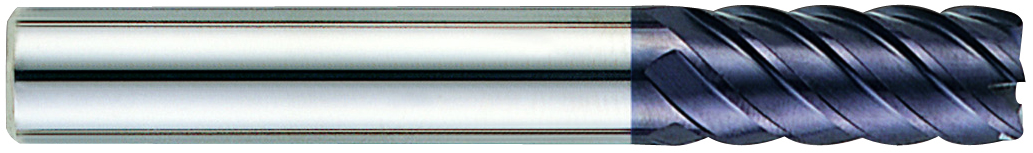

| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
5/16"
Mill Diameter (Decimal Inch):
0.3125"
Mill Diameter (mm):
7.94mm
Number of Flutes:
4
Length of Cut (Inch):
13/16"
Length of Cut (Decimal Inch):
0.8125"
Length of Cut (mm):
20.64mm
Material:
Carbide
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.20mm
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Shank Diameter (mm):
7.94mm
Corner Radius (Inch):
1/50"
Corner Radius (Decimal Inch):
0.0200"
Corner Radius (mm):
0.51mm
