Product Specifications
| Manufacturer Part Number | GM813160 |
| Mill Diameter (Inch) | 17/27" |
| Mill Diameter (Decimal Inch) | 0.6299" |
| Mill Diameter (mm) | 16.00mm |
| Shank Diameter (Inch) | 17/27" |
| Shank Diameter (Decimal Inch) | 0.6299" |
| Shank Diameter (mm) | 16.00mm |
| Length of Cut (Inch) | 1-2/11" |
| Length of Cut (Decimal Inch) | 1.1811" |
| Length of Cut (mm) | 30.00mm |
| Overall Length (Inch) | 5-22/43" |
| Overall Length (Decimal Inch) | 5.5118" |
| Overall Length (mm) | 140.00mm |
| Ball nose Radius (Inch) | 23/73" |
| Ball Nose Radius (Decimal Inch) | 0.3150" |
| Ball Nose Radius (mm) | 8.00mm |
| Helix (Degree) | 30 Degree |
| Number of Flute | 2 |
| Shank Type | Plain |
| Material | Carbide |

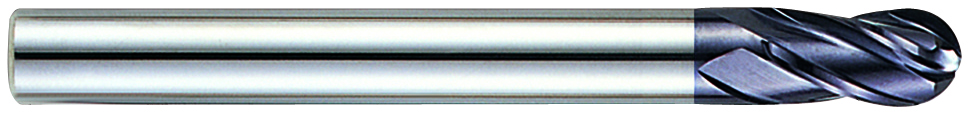

| Product Type | Ball Nose End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
17/27"
Mill Diameter (Decimal Inch):
0.6299"
Mill Diameter (mm):
16.00mm
Number of Flutes:
2
Length of Cut (Inch):
1-2/11"
Length of Cut (Decimal Inch):
1.1811"
Length of Cut (mm):
30.00mm
Material:
Carbide
Overall Length (Inch):
5-22/43"
Overall Length (Decimal Inch):
5.5118"
Overall Length (mm):
140.00mm
Shank Diameter (Inch):
17/27"
Shank Diameter (Decimal Inch):
0.6299"
Shank Diameter (mm):
16.00mm
