Product Specifications
| Manufacturer Part Number | GM961024 |
| Mill Diameter (Inch) | 3/8" |
| Mill Diameter (Decimal Inch) | 0.3750" |
| Mill Diameter (mm) | 9.53mm |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (mm) | 9.53mm |
| Length of Cut (Inch) | 3/4" |
| Length of Cut (Decimal Inch) | 0.7500" |
| Length of Cut (mm) | 19.05mm |
| Overall Length (Inch) | 4" |
| Overall Length (Decimal Inch) | 4.0000" |
| Overall Length (mm) | 101.60mm |
| Ball nose Radius (Inch) | 3/16" |
| Ball Nose Radius (Decimal Inch) | 0.1875" |
| Ball Nose Radius (mm) | 4.76mm |
| LBS (Inch) | 1-1/4" |
| LBS (Decimal Inch) | 1.2500" |
| LBS (mm) | 31.75mm |
| Neck Diameter (Inch) | 29/79" |
| Neck Diameter (Decimal Inch) | 0.367" |
| Neck Diameter (mm) | 9.32mm |
| Helix (Degree) | 30 Degree |
| Number of Flute | 2 |
| Shank Type | Plain |
| Material | Carbide |

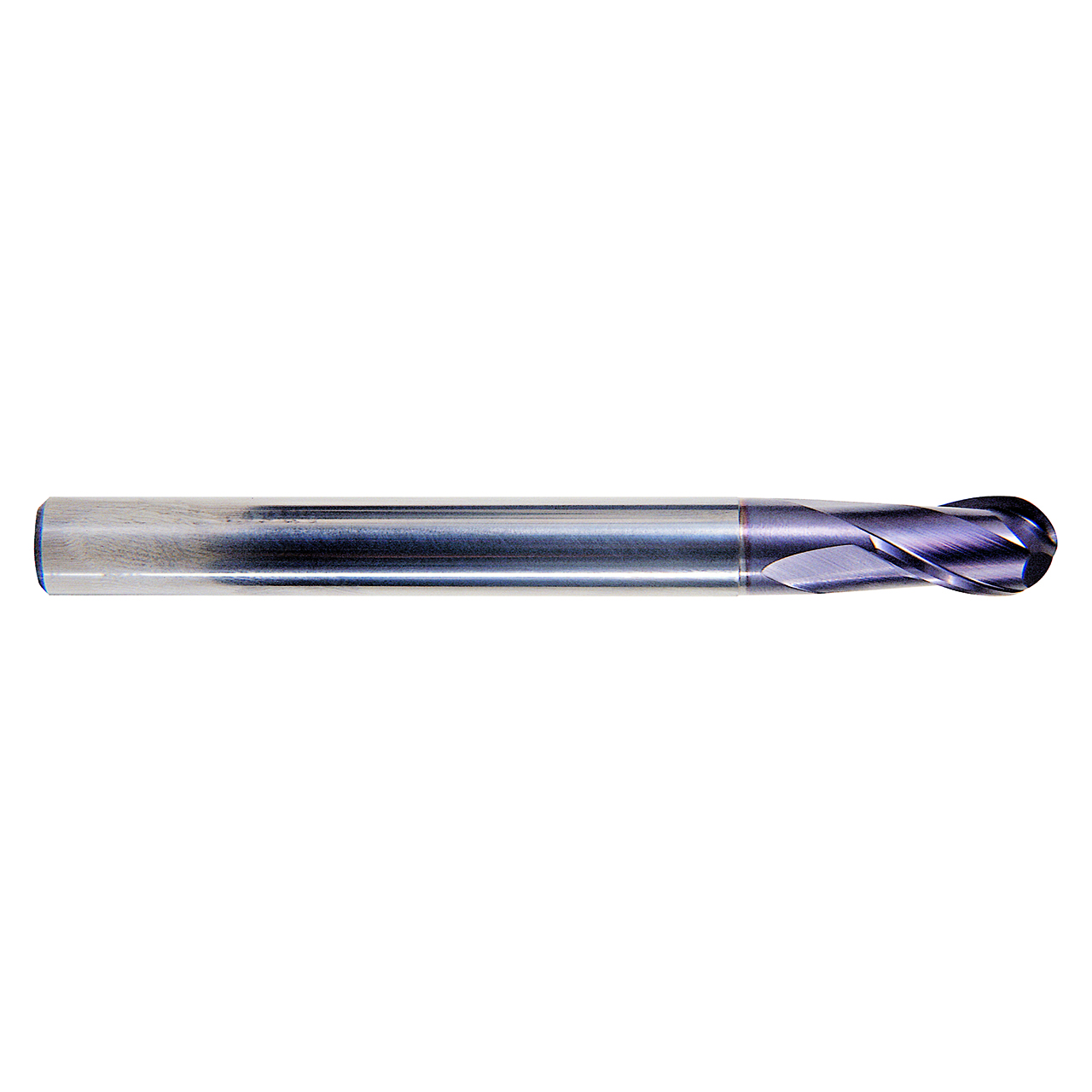

| Product Type | Ball Nose End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
3/8"
Mill Diameter (Decimal Inch):
0.3750"
Mill Diameter (mm):
9.53mm
Number of Flutes:
2
Length of Cut (Inch):
3/4"
Length of Cut (Decimal Inch):
0.7500"
Length of Cut (mm):
19.05mm
Material:
Carbide
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.60mm
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
interval quantity:
1
