Product Specifications
| EDP Number | GMF15938 |
| Diameter (Decimal Inch) | 0.3750" |
| Diameter (Inch) | 3/8" |
| Diameter (mm) | 9.53mm |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (mm) | 9.53mm |
| Length of Cut (Decimal Inch) | 0.6875" |
| Length of Cut (Inch) | 11/16" |
| Length of Cut (mm) | 17.46mm |
| Overall Length (Decimal Inch) | 7.0000" |
| Overall Length (Inch) | 7" |
| Overall Length (mm) | 177.80mm |
| Ball Nose Radius (Decimal Inch) | 0.1875" |
| Ball Nose Radius (Inch) | 3/16" |
| Ball Nose Radius (mm) | 4.76mm |
| Shank Style | Plain |
| Helix Angle (Degree) | 30 Degree |
| Coating | AlCrN |
| Number of Flutes | 2 |
| Cut Type | Center Cut |
| Corner Type | Ball Nose |
| Series | GMF15 |
| Material | Carbide |

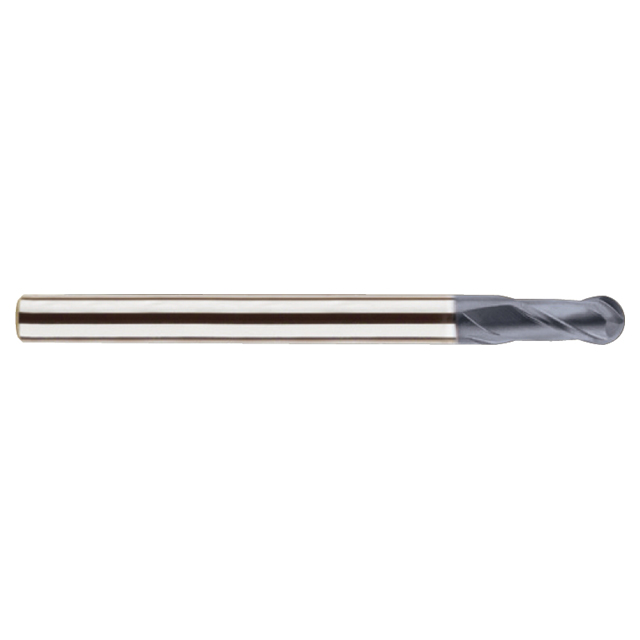

| Product Type | Ball Nose End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Number of Flutes:
2
Length of Cut (Inch):
11/16"
Length of Cut (Decimal Inch):
0.6875"
Length of Cut (mm):
17.46mm
Material:
Carbide
Overall Length (Inch):
7"
Overall Length (Decimal Inch):
7.0000"
Overall Length (mm):
177.80mm
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Finish/Coating:
AlCrN
Helix Angle:
30°
