Product Specifications
| EDP Number | GMF21032 |
| Diameter (Decimal Inch) | 0.5000" |
| Diameter (Inch) | 1/2" |
| Diameter (mm) | 12.70mm |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (mm) | 12.70mm |
| Length of Cut (Decimal Inch) | 0.6875" |
| Length of Cut (Inch) | 11/16" |
| Length of Cut (mm) | 17.46mm |
| Overall Length (Decimal Inch) | 3.125" |
| Overall Length (Inch) | 3-1/8" |
| Overall Length (mm) | 79.37mm |
| Corner Radius (Decimal Inch) | 0.0200" |
| Corner Radius (Inch) | 1/50" |
| Shank Style | Plain |
| Helix Angle (Degree) | Variable |
| Coating | AlCrN |
| Number of Flutes | 4 |
| Corner Radius (mm) | 0.51mm |
| Cut Type | Center Cut |
| Corner Type | Corner Radius |
| Series | GMF21 |
| Material | Carbide |

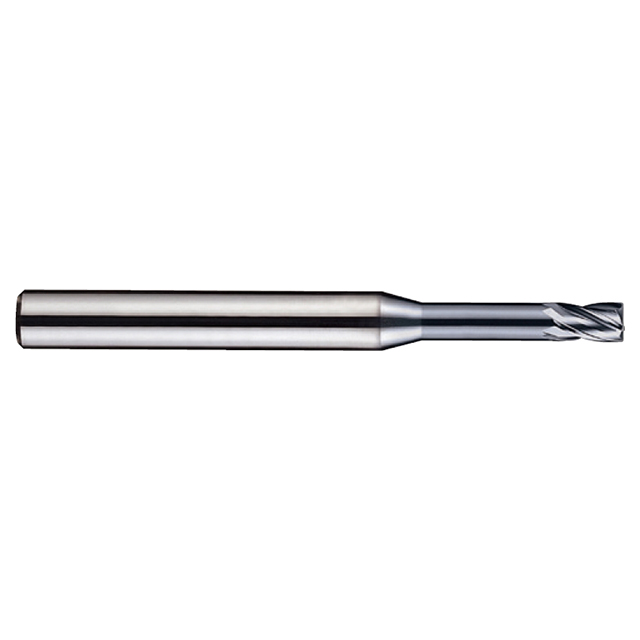

| Product Type | Corner Radius With Neck End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
