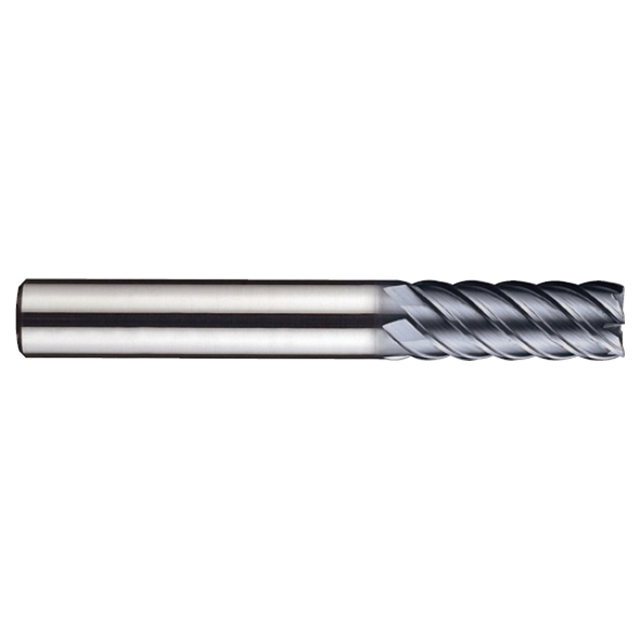

Product Specifications
| EDP Number | GMF29048 |
| Diameter (Decimal Inch) | 0.7500" |
| Diameter (Inch) | 3/4" |
| Diameter (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (mm) | 19.05mm |
| Length of Cut (Decimal Inch) | 1.75" |
| Length of Cut (Inch) | 1 3/4" |
| Length of Cut (mm) | 44.45mm |
| Overall Length (Decimal Inch) | 4.0000" |
| Overall Length (Inch) | 4" |
| Overall Length (mm) | 101.60mm |
| Shank Style | Plain |
| Helix Angle (Degree) | 45 Degree |
| Coating | AlCrN |
| Number of Flutes | 6 |
| Cut Type | Center Cut |
| Corner Type | Square End |
| Series | GMF29 |
| Material | Carbide |
| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Number of Flutes:
6
Helix Angle:
45 Degree
interval quantity:
1
