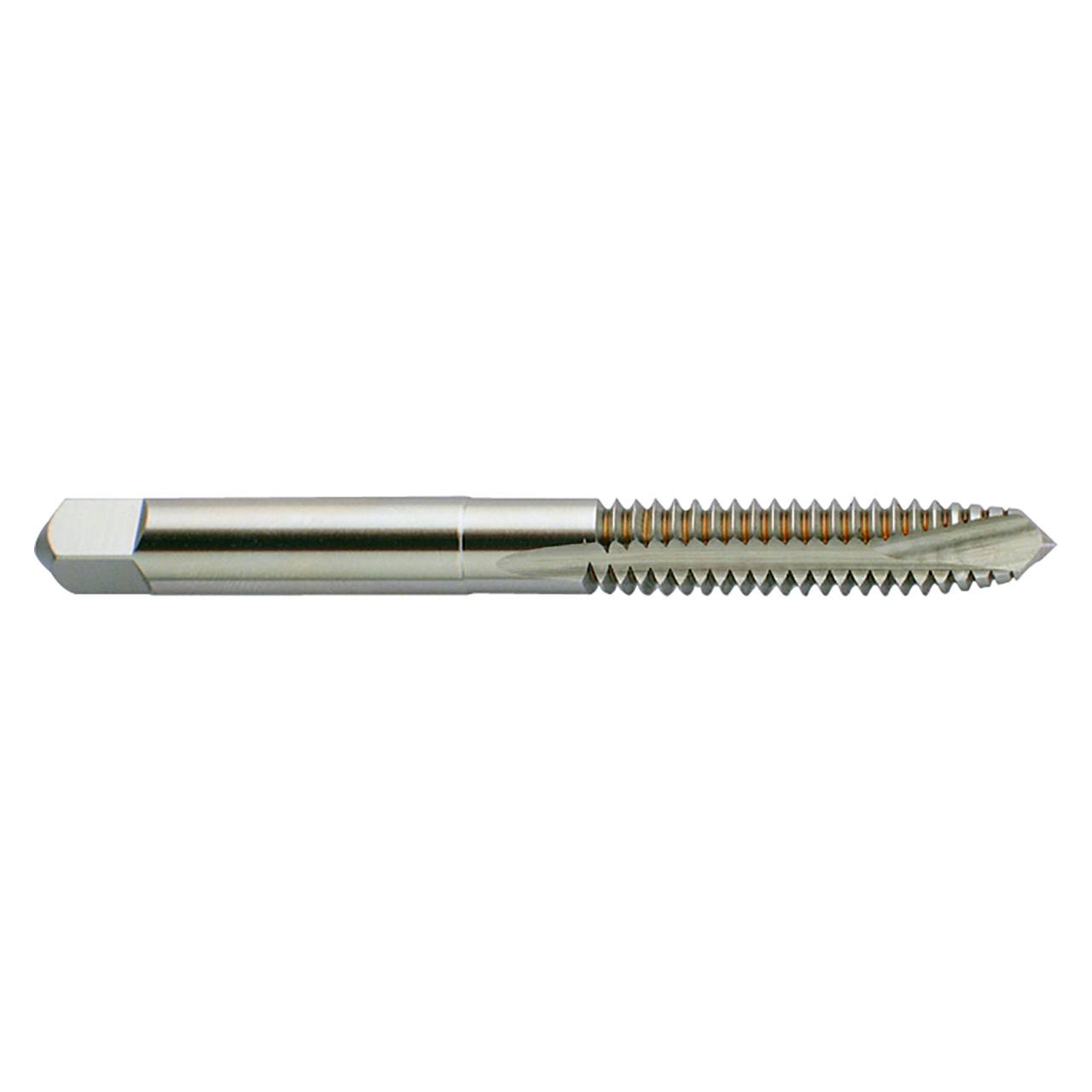

Product Specifications
| EDP Number | J7445 |
| Size & Pitch | 5/16-18 |
| Diameter (Decimal Inch) | 0.3125" |
| Diameter (mm) | 7.94mm |
| Overall Length (Decimal Inch) | 2.7200" |
| Length/Diameter | 3.0 x D |
| Coolant Through | No |
| Overall Length (mm) | 69.09mm |
| Thread Length (Decimal Inch) | 1.1300" |
| Thread Length (mm) | 28.70mm |
| Square Length (Decimal Inch) | 0.3800" |
| Square Length (mm) | 9.65mm |
| Shank Diameter (Decimal Inch) | 0.3180" |
| Shank Diameter (mm) | 8.08mm |
| Square Size (Decimal Inch) | 0.2380" |
| Square Size (mm) | 6.05mm |
| Drill Size (Decimal Inch) | 0.2620" |
| Drill Size (mm) | 6.65mm |
| Useable Length (mm) | 28.70mm |
| Useable Length (Decimal Inch) | 1.1300" |
| Connection (Decimal Inch) | 0.318 x 0.238" |
| Connection (mm) | 8.08 x 6.05mm |
| Series | J7 |
| Chamfer Type | Plug |
| Chamfer Length | 4P-5P |
| Thread Series | UNC |
| Pitch Limit | H5 |
| Blank Standard | 302 |
| Helix Angle (Degree) | 0 Degree |
| Finish | Hardslick |
| Shank Type | Square |
| Trade Name | YG Tap GP |
| Tap Type | SPPT |
| Number of Flute | 2 |
| Material | HSSE-V3 |
| Product Type | Spiral Point Tap |
