Product Specifications

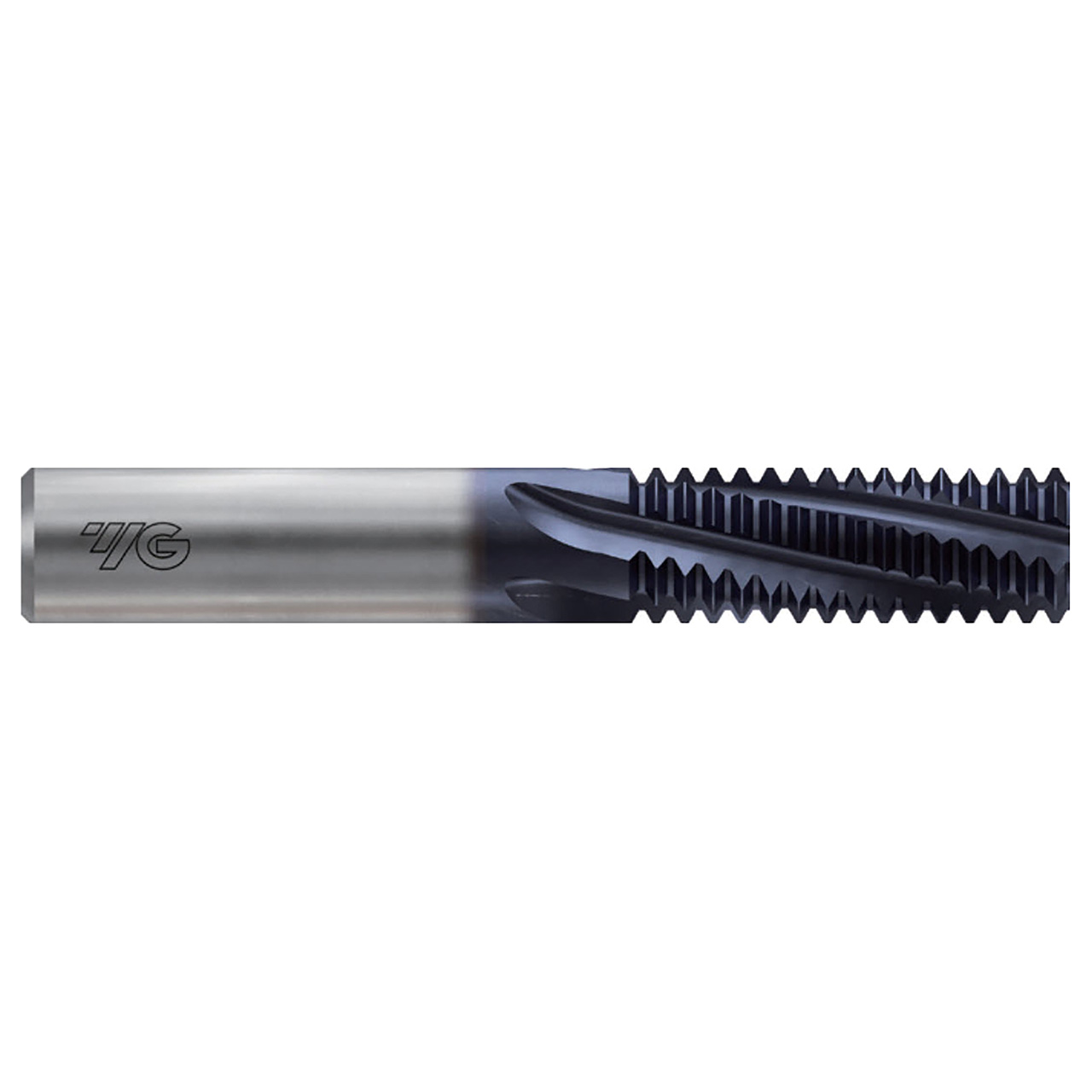

| Manufacturer Part Number | L121K560 |
| Thread Diameter (Inch) | 1/2" & 3/4" |
| Threads Per Inch | 14 TPI |
| Diameter (Inch) | 49/99" |
| Diameter (Decimal Inch) | 0.4950" |
| Diameter (mm) | 12.57mm |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Shank Diameter (mm) | 12.70mm |
| Thread Length (Inch) | 1-1/14" |
| Thread Length (Decimal Inch) | 1.0710" |
| Thread Length (mm) | 27.20mm |
| Overall Length (Inch) | 3-1/2" |
| Overall Length (Decimal Inch) | 3.5000" |
| Overall Length (mm) | 88.90mm |
| Number of Flutes | 4 |
| Series | L121K |
| Thread Series | NPS |
| Shank Style | Plain |
| Helix Angle | 15 Degree |
| Coating | TiAIN |
| Material | Carbide |
| Type | NPS Thread-ANSI B 1.20.1 |
| Application | P,K,N |
| Cutting Direction | Right |
