Product Specifications

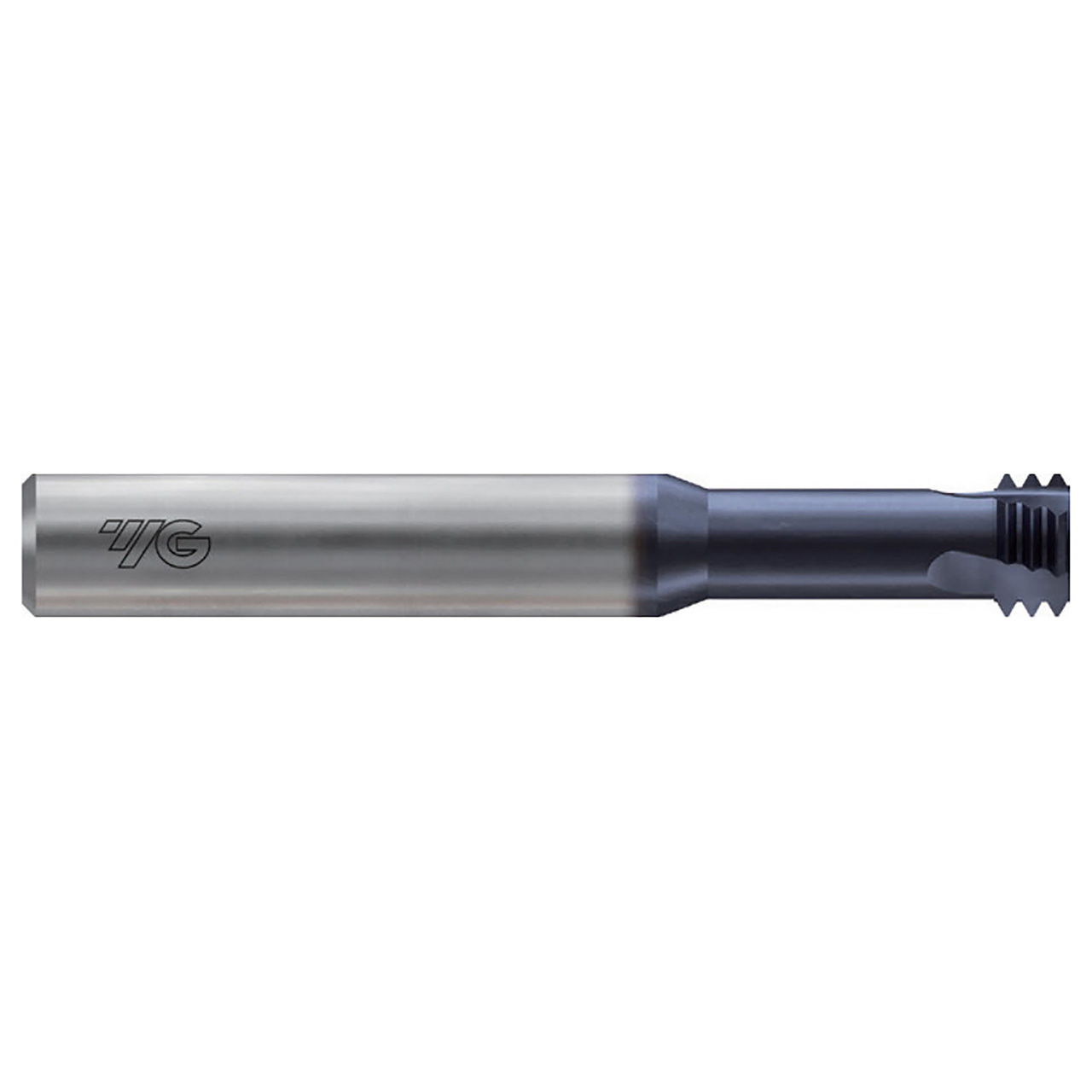

| Manufacturer Part Number | L12DD500 |
| Thread Diameter (Inch) | M12 |
| Threads Per Inch | 1.75 TPI |
| Diameter (Inch) | 23/62" |
| Diameter (Decimal Inch) | 0.3710" |
| Diameter (mm) | 9.42mm |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (mm) | 9.53mm |
| Thread Length (Inch) | 6/29" |
| Thread Length (Decimal Inch) | 0.2070" |
| Thread Length (mm) | 5.26mm |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall Length (mm) | 63.50mm |
| Neck (Inch) | 61/62" |
| Number of Flutes | 4 |
| Series | L12DD |
| Thread Series | M |
| Shank Style | Plain |
| Helix Angle | 15 Degree |
| Coating | TiAIN |
| Material | Carbide |
| Type | Metric Internal Thread-DIN13 |
| Application | P,K,N |
| Cutting Direction | Right |
