Product Specifications

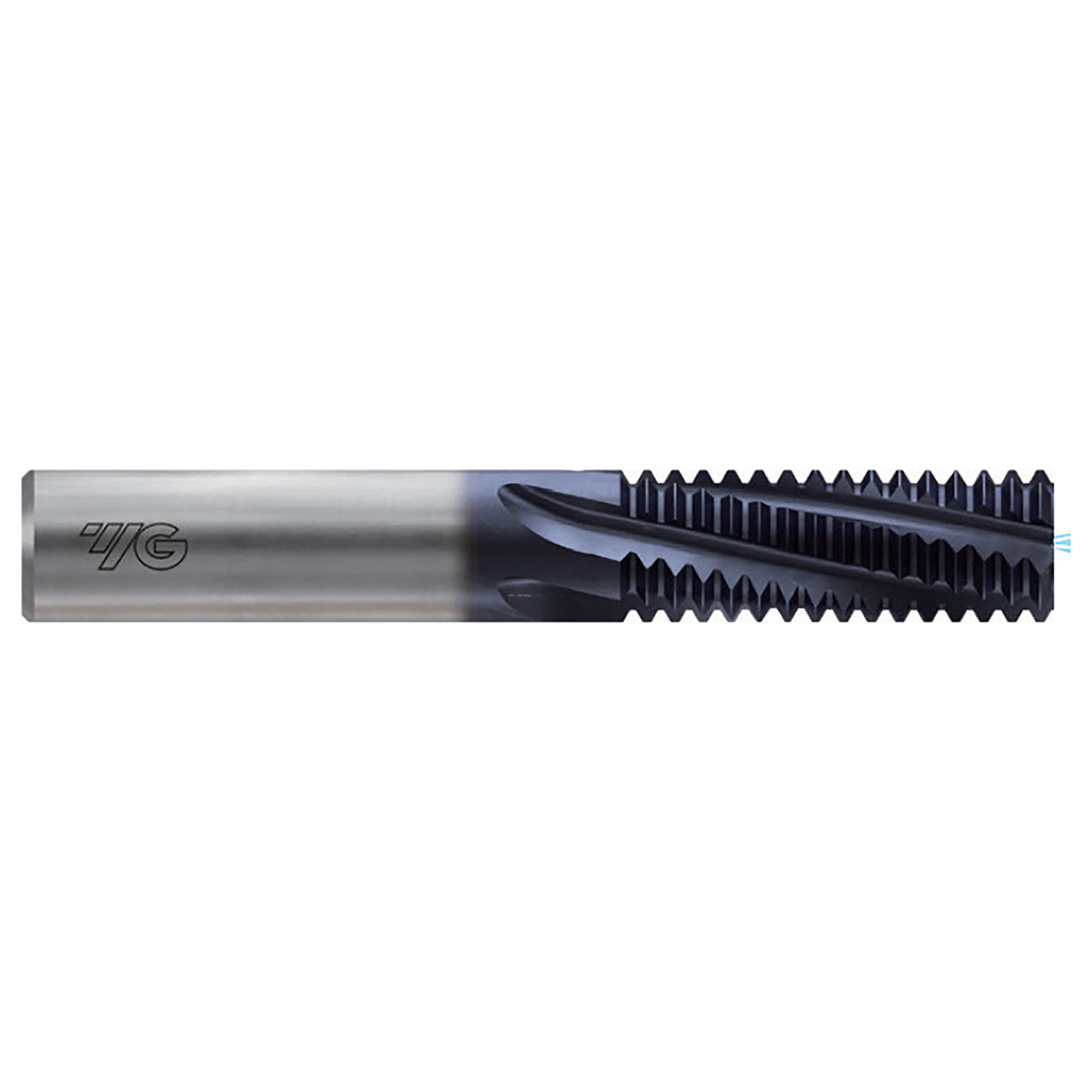

| Manufacturer Part Number | L421EF90 |
| Thread Diameter (Inch) | 1/2" |
| Threads Per Inch | 32 TPI |
| Diameter (Inch) | 10/27" |
| Diameter (Decimal Inch) | 0.3700" |
| Diameter (mm) | 9.40mm |
| Shank Diameter (Inch) | 1" |
| Shank Diameter (Decimal Inch) | 1.0000" |
| Shank Diameter (mm) | 25.40mm |
| Thread Length (Inch) | 1" |
| Thread Length (Decimal Inch) | 1.0000" |
| Thread Length (mm) | 25.40mm |
| Overall Length (Inch) | 3-1/2" |
| Overall Length (Decimal Inch) | 3.5000" |
| Overall Length (mm) | 88.90mm |
| Number of Flutes | 4 |
| Series | L421E |
| Thread Series | UN |
| Shank Style | Plain |
| Helix Angle | 15 Degree |
| Coating | TiAIN |
| Material | Carbide |
| Type | Unified Internal Threads-ANSI B1.1 |
| Application | P,K,N |
| Cutting Direction | Right |
