Product Specifications

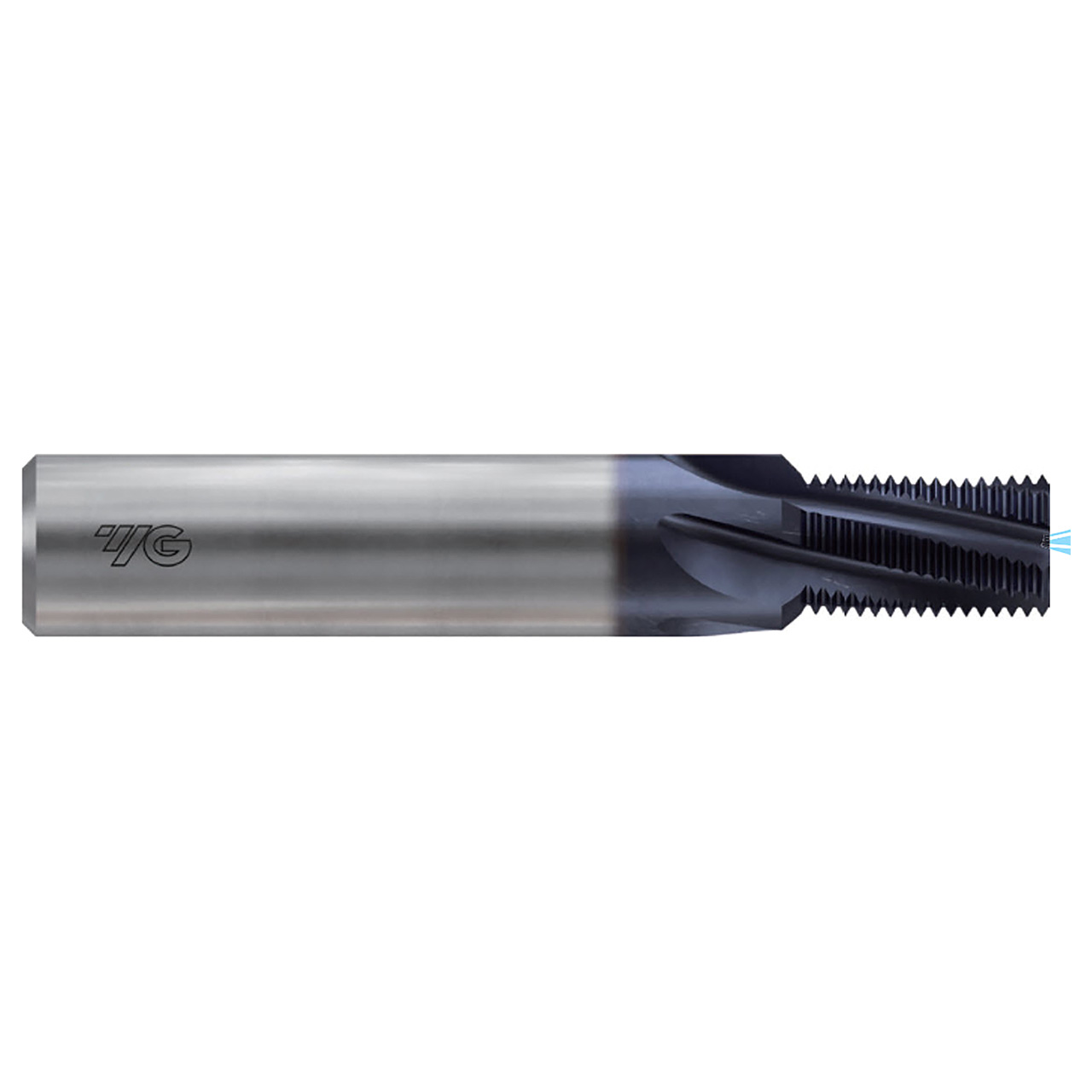

| Manufacturer Part Number | L427E560 |
| Thread Diameter (Inch) | 1/2" |
| Threads Per Inch | 13 TPI |
| Diameter (Inch) | 5/13" |
| Diameter (Decimal Inch) | 0.3850" |
| Diameter (mm) | 9.78mm |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Shank Diameter (mm) | 12.70mm |
| Thread Length (Inch) | 1" |
| Thread Length (Decimal Inch) | 1.0000" |
| Thread Length (mm) | 25.40mm |
| Overall Length (Inch) | 3-1/2" |
| Overall Length (Decimal Inch) | 3.5000" |
| Overall Length (mm) | 88.90mm |
| Angle | 90 Degree |
| Number of Flutes | 4 |
| Series | L427E |
| Thread Series | UN |
| Shank Style | Plain |
| Helix Angle | 15 Degree |
| Coating | TiAIN |
| Material | Carbide |
| Type | Unified Internal Thread-DIN13 |
| Application | P,K,N |
| Cutting Direction | Right |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Thread Size (Inch):
1/2"
Thread Size (Decimal Inch):
0.5000"
Thread Size (mm):
12.70mm
Threads Per Inch:
13 TPI
Cutter Diameter (Inch):
5/13"
Cutter Diameter (Decimal Inch):
0.3850"
Cutter Diameter (mm):
9.78mm
Shank Diameter (Inch):
1/2"
Shank Diameter (Decimal Inch):
0.5000"
Number of Flutes:
4
Finish/Coating:
TiAIN
Material:
Carbide
