Product Specifications
| # Manufacturer Number | P01405 |
| Min. Insert Diameter (Decimal Inch) | 1.9063" |
| Min.-Insert-Diameter-(Inch) | 1-29/32" |
| Min. Insert Diameter (mm) | 48.42mm |
| Max. Insert Diameter (Decimal Inch) | 2.5625" |
| Max. Insert Diameter (Inch) | 2-9/16" |
| Max. Insert Diameter (mm) | 65.09mm |
| Max Drill Depth (Decimal Inch) | 5.1300" |
| Max Drill Depth (Inch) | 5-1/8" |
| Max Drill Depth (mm) | 130.18mm |
| Flute Length (Decimal Inch) | 6.5000" |
| Flute Length (Inch) | 6-1/2" |
| Flute Length (mm) | 165.10mm |
| Overall Length (Decimal Inch) | 14.3100" |
| Overall Length (Inch) | 14-5/16" |
| Overall Length (mm) | 363.54mm |
| Reference Length (Decimal Inch) | 8.6300" |
| Reference Length (Decimal Inch) | 8-5/8" |
| Reference Length (Decimal Inch) | 219.08mm |
| Pipe Tap (Inch) | 1/4" |
| Morse Taper | #5 |
| Number of Flute | 2 |
| Coating | Oxide |
| Material | Steel |
| Cutting Direction | Right |

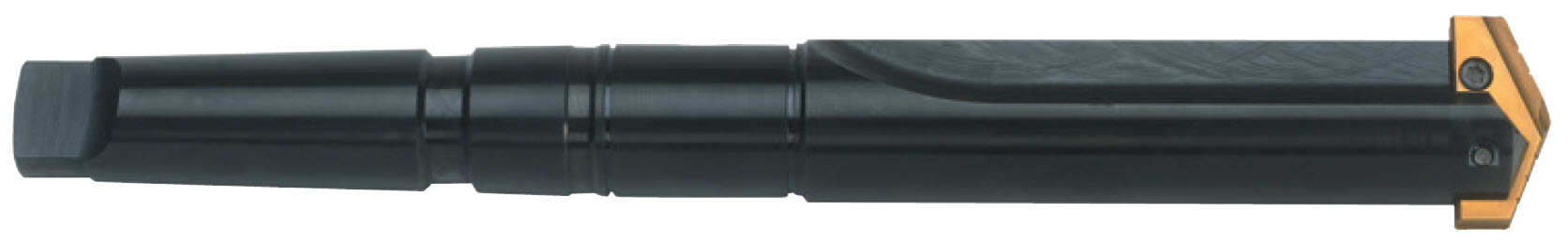

| Product Type | Spade Drill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Series:
P01
Minimum Drill Diameter (Inch):
1.9063"
Minimum Drill Diameter (Decimal Inch):
1 29/32"""
Minimum Drill Diameter (mm):
48.42mm
Maximum Drill Diameter (Inch):
2.5625"
Maximum Drill Diameter (Decimal Inch):
2-9/16"""
Maximum Drill Diameter (mm):
65.09mm
Overall Length (Inch):
14-5/16"
Overall Length (Decimal Inch):
14.3100"""
Overall Length (mm):
14.3100"
Maximum Drill Depth (Inch):
5-1/8"""
Maximum Drill Depth (Decimal Inch):
5.1300"
Maximum Drill Depth (mm):
130.18mm"
Flute Type:
Straight
Shank Type:
Morse Taper
Material:
Steel
Finish/Coating:
Oxide
interval quantity:
1
