Product Specifications
| # Manufacturer Number | P03052 |
| Min. Insert Diameter (Decimal Inch) | 0.6094" |
| Min.-Insert-Diameter-(Inch) | 39/64" |
| Min. Insert Diameter (mm) | 15.48mm |
| Max. Insert Diameter (Decimal Inch) | 0.6875" |
| Max. Insert Diameter (Inch) | 11/16" |
| Max. Insert Diameter (mm) | 17.46mm |
| Max Drill Depth (Decimal Inch) | 2.5000" |
| Max Drill Depth (Inch) | 2-1/2" |
| Max Drill Depth (mm) | 63.50mm |
| Flute Length (Decimal Inch) | 3.3100" |
| Flute Length (Inch) | 3-5/16" |
| Flute Length (mm) | 84.14mm |
| Overall Length (Decimal Inch) | 7.5900" |
| Overall Length (Inch) | 7-19/32" |
| Overall Length (mm) | 192.88mm |
| Reference Length (Decimal Inch) | 4.7700" |
| Reference Length (Decimal Inch) | 4-49/64" |
| Reference Length (Decimal Inch) | 121.05mm |
| Pipe Tap (Inch) | 1/16" |
| Morse Taper | #2 |
| Number of Flute | 2 |
| Coating | Oxide |
| Material | Steel |
| Cutting Direction | Right |

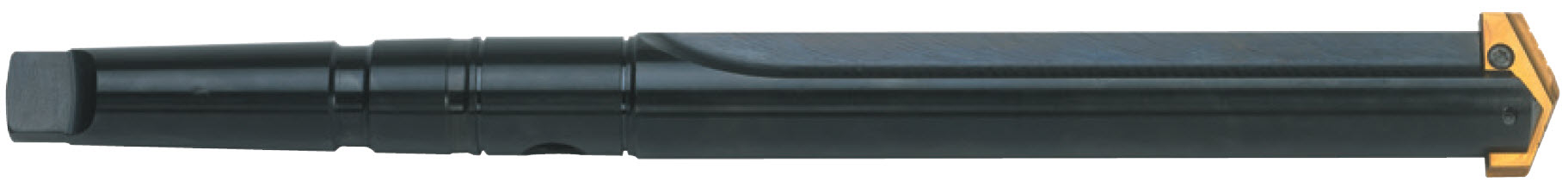

| Product Type | Spade Drill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Series:
P03
Minimum Drill Diameter (Inch):
0.6094";Minimum Drill Diameter (Decimal Inch)=39/64"""""
Minimum Drill Diameter (mm):
15.48mm
Maximum Drill Diameter (Inch):
0.6875";Maximum Drill Diameter (Decimal Inch)=11/16"""""
Maximum Drill Diameter (mm):
17.46mm
Overall Length (Inch):
7-19/32";Overall Length (Decimal Inch)=7.5900"""""
Overall Length (mm):
7.5900";Maximum Drill Depth (Inch)=2-1/2"""""
Maximum Drill Depth (Decimal Inch):
2.5000";Maximum Drill Depth (mm)=63.50mm"""
Flute Type:
Straight
Shank Type:
Morse Taper
Material:
Steel
Finish/Coating:
Oxide
interval quantity:
1
