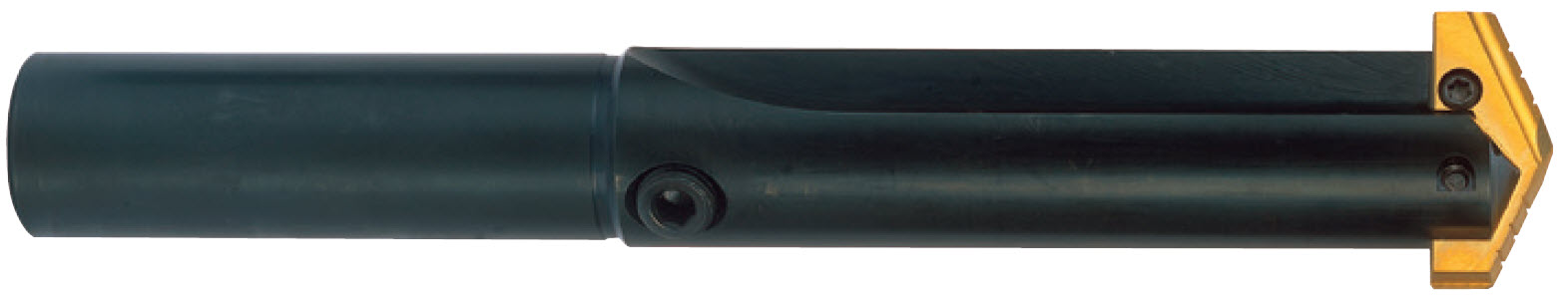

YG1 P13051 | 11/16" Diameter x 1-3/8" Max Drill Depth x 4-9/16" OAL 2 Flute Oxide Coated Steel Spade Drill Holder

$180.23
Brand:
YG1
Series:
P13
Minimum Drill Diameter (Decimal Inch):
0.6094";Minimum Drill Diameter (Inch)=39/64""
Minimum Drill Diameter (mm):
15.48mm
Maximum Drill Diameter (Decimal Inch):
0.6875";Maximum Drill Diameter (Inch)=11/16""
Maximum Drill Diameter (mm):
17.46mm
Overall Length (Inch):
4-9/16";Overall Length (Decimal Inch)=4.5600""
Overall Length (mm):
4.5600";Maximum Drill Depth (Inch)=1-3/8""
Maximum Drill Depth (Decimal Inch):
1.3800";Maximum Drill Depth (mm)=34.93mm"
Flute Type:
Straight
Shank Type:
Straight
Shank Diameter (Decimal Inch):
0.7500";Shank Diameter (Inch)=3/4""
Shank Diameter (mm):
19.05mm
Material:
Steel
Finish/Coating:
Oxide
SKU:
23013183
Weight:
1.23 LBS
Shipping:
Free Shipping
YG1 P13051 | 11/16" Diameter x 1-3/8" Max Drill Depth x 4-9/16" OAL 2 Flute Oxide Coated Steel Spade Drill Holder

Product Specifications
# Manufacturer NumberP13051
Min. Insert Diameter (Decimal Inch)0.6094"
Min.-Insert-Diameter-(Inch)39/64"
Min. Insert Diameter (mm)15.48mm
Max. Insert Diameter (Decimal Inch)0.6875"
Max. Insert Diameter (Inch)11/16"
Max. Insert Diameter (mm)17.46mm
Shank Diameter (Decimal Inch)0.7500"
Shank Diameter (Inch)3/4"
Shank Diameter (mm)19.05mm
Max Drill Depth (Decimal Inch)1.3800"
Max Drill Depth (Inch)1-3/8"
Max Drill Depth (mm)34.93mm
Flute Length (Decimal Inch)2.1900"
Flute Length (Inch)2-3/16"
Flute Length (mm)55.56mm
Overall Length (Decimal Inch)4.5600"
Overall Length (Inch)4-9/16"
Overall Length (mm)115.89mm
Shank Length (Decimal Inch)2.3800"
Shank Length (Inch)2-3/8"
Shank Length (mm)60.33mm
Reference Length (Decimal Inch)2.3000"
Reference Length (Decimal Inch)2-19/64"
Reference Length (Decimal Inch)58.34mm
Pipe Tap (Inch)1/8"
Number of Flute2
CoatingOxide
MaterialSteel
Cutting DirectionRight
Product TypeSpade Drill Holder
