Product Specifications
| # Manufacturer Number | P14253 |
| Min. Insert Diameter (Decimal Inch) | 1.1875" |
| Min.-Insert-Diameter-(Inch) | 1-3/16" |
| Min. Insert Diameter (mm) | 30.16mm |
| Max. Insert Diameter (Decimal Inch) | 1.3750" |
| Max. Insert Diameter (Inch) | 1-3/8" |
| Max. Insert Diameter (mm) | 34.93mm |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (mm) | 19.05mm |
| Max Drill Depth (Decimal Inch) | 5.3800" |
| Max Drill Depth (Inch) | 5-3/8" |
| Max Drill Depth (mm) | 136.53mm |
| Flute Length (Decimal Inch) | 6.5000" |
| Flute Length (Inch) | 6-1/2" |
| Flute Length (mm) | 165.10mm |
| Overall Length (Decimal Inch) | 10.0000" |
| Overall Length (Inch) | 10" |
| Overall Length (mm) | 254.00mm |
| Shank Length (Decimal Inch) | 2.0300" |
| Shank Length (Inch) | 2-1/32" |
| Shank Length (mm) | 51.59mm |
| Reference Length (Decimal Inch) | 6.6400" |
| Reference Length (Decimal Inch) | 6-41/64" |
| Reference Length (Decimal Inch) | 168.67mm |
| Pipe Tap (Inch) | 1/8" |
| Number of Flute | 2 |
| Coating | Oxide |
| Material | Steel |
| Cutting Direction | Right |

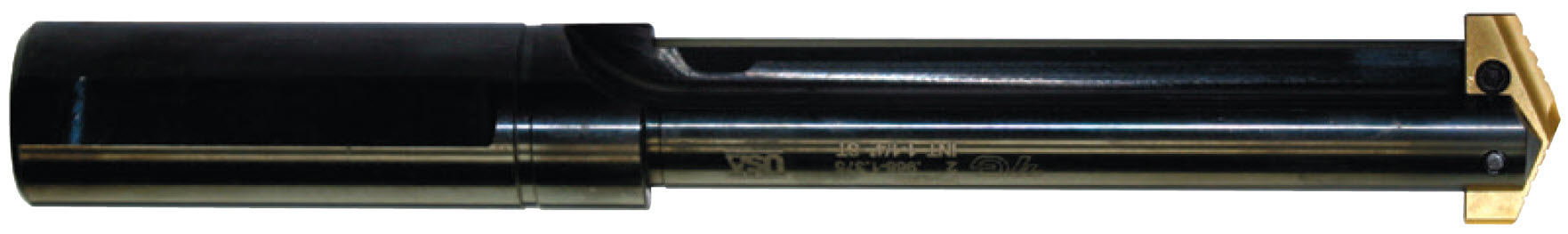

| Product Type | Spade Drill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Series:
P14
Minimum Drill Diameter (Decimal Inch):
1.1875"
Minimum Drill Diameter (Inch):
1 3/16"""
Minimum Drill Diameter (mm):
30.16mm
Maximum Drill Diameter (Decimal Inch):
1.3750"
Maximum Drill Diameter (Inch):
1-3/8"""
Maximum Drill Diameter (mm):
34.93mm
Overall Length (Inch):
10"
Overall Length (Decimal Inch):
10.0000"""
Overall Length (mm):
10.0000"
Maximum Drill Depth (Inch):
5-3/8"""
Maximum Drill Depth (Decimal Inch):
5.3800"
Maximum Drill Depth (mm):
136.53mm"
Flute Type:
Straight
Shank Type:
Straight
Shank Diameter (Decimal Inch):
0.7500"
Shank Diameter (Inch):
3/4"""
Shank Diameter (mm):
19.05mm
Material:
Steel
Finish/Coating:
Oxide
