Product Specifications
| # Manufacturer Number | P15405 |
| Min. Insert Diameter (Decimal Inch) | 1.9063" |
| Min.-Insert-Diameter-(Inch) | 1-29/32" |
| Min. Insert Diameter (mm) | 48.42mm |
| Max. Insert Diameter (Decimal Inch) | 2.5625" |
| Max. Insert Diameter (Inch) | 2-9/16" |
| Max. Insert Diameter (mm) | 65.09mm |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (mm) | 19.05mm |
| Max Drill Depth (Decimal Inch) | 9.1300" |
| Max Drill Depth (Inch) | 9-1/8" |
| Max Drill Depth (mm) | 231.78mm |
| Flute Length (Decimal Inch) | 10.5000" |
| Flute Length (Inch) | 10-1/2" |
| Flute Length (mm) | 266.70mm |
| Overall Length (Decimal Inch) | 14.5000" |
| Overall Length (Inch) | 14-1/2" |
| Overall Length (mm) | 368.30mm |
| Shank Length (Decimal Inch) | 2.0300" |
| Shank Length (Inch) | 2-1/32" |
| Shank Length (mm) | 51.59mm |
| Reference Length (Decimal Inch) | 10.6900" |
| Reference Length (Decimal Inch) | 10-11/16" |
| Reference Length (Decimal Inch) | 271.46mm |
| Pipe Tap (Inch) | 1/4" |
| Number of Flute | 2 |
| Coating | Oxide |
| Material | Steel |
| Cutting Direction | Right |

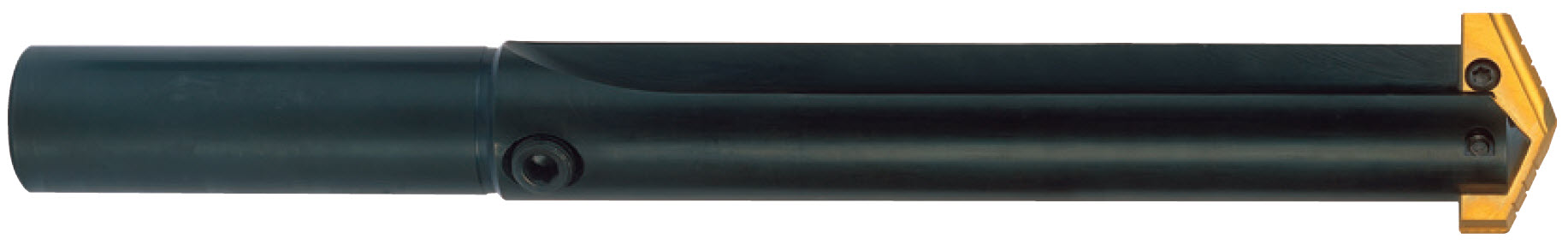

| Product Type | Spade Drill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Series:
P15
Minimum Drill Diameter (Decimal Inch):
1.9063";Minimum Drill Diameter (Inch)=1 29/32"""""
Minimum Drill Diameter (mm):
48.42mm
Maximum Drill Diameter (Decimal Inch):
2.5625";Maximum Drill Diameter (Inch)=2-9/16"""""
Maximum Drill Diameter (mm):
65.09mm
Overall Length (Inch):
14-1/2";Overall Length (Decimal Inch)=14.5000"""""
Overall Length (mm):
14.5000";Maximum Drill Depth (Inch)=9-1/8"""""
Maximum Drill Depth (Decimal Inch):
9.1300";Maximum Drill Depth (mm)=231.78mm"""
Flute Type:
Straight
Shank Type:
Straight
Shank Diameter (Decimal Inch):
0.7500";Shank Diameter (Inch)=3/4"""""
Shank Diameter (mm):
19.05mm
Material:
Steel
Finish/Coating:
Oxide
interval quantity:
1
