Product Specifications
| # Manufacturer Number | P16Y01 |
| Min. Insert Diameter (Decimal Inch) | 0.3750" |
| Min.-Insert-Diameter-(Inch) | 3/8" |
| Min. Insert Diameter (mm) | 9.53mm |
| Max. Insert Diameter (Decimal Inch) | 0.4219" |
| Max. Insert Diameter (Inch) | 27/64" |
| Max. Insert Diameter (mm) | 10.72mm |
| Shank Diameter (Decimal Inch) | 1.2500" |
| Shank Diameter (Inch) | 1-1/4" |
| Shank Diameter (mm) | 31.75mm |
| Max Drill Depth (Decimal Inch) | 4.3800" |
| Max Drill Depth (Inch) | 4-3/8" |
| Max Drill Depth (mm) | 111.13mm |
| Flute Length (Decimal Inch) | 5.1600" |
| Flute Length (Inch) | 5-5/32" |
| Flute Length (mm) | 130.97mm |
| Overall Length (Decimal Inch) | 7.5300" |
| Overall Length (Inch) | 7-17/32" |
| Overall Length (mm) | 191.29mm |
| Shank Length (Decimal Inch) | 2.2800" |
| Shank Length (Inch) | 2-9/32" |
| Shank Length (mm) | 57.94mm |
| Reference Length (Decimal Inch) | 5.2500" |
| Reference Length (Decimal Inch) | 5-1/4" |
| Reference Length (Decimal Inch) | 133.35mm |
| Pipe Tap (Inch) | 1/8" |
| Number of Flute | 2 |
| Coating | Oxide |
| Material | Steel |
| Cutting Direction | Right |

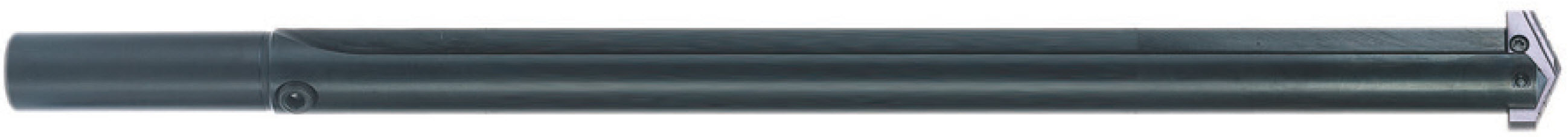

| Product Type | Spade Drill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Series:
P16
Minimum Drill Diameter (Decimal Inch):
0.3750";Minimum Drill Diameter (Inch)=3/8""
Minimum Drill Diameter (mm):
9.53mm
Maximum Drill Diameter (Decimal Inch):
0.4219";Maximum Drill Diameter (Inch)=27/64""
Maximum Drill Diameter (mm):
10.72mm
Overall Length (Inch):
7-17/32";Overall Length (Decimal Inch)=7.5300""
Overall Length (mm):
7.5300";Maximum Drill Depth (Inch)=4-3/8""
Maximum Drill Depth (Decimal Inch):
4.3800";Maximum Drill Depth (mm)=111.13mm"
Flute Type:
Straight
Shank Type:
Straight
Shank Diameter (Decimal Inch):
1.2500";Shank Diameter (Inch)=1-1/4""
Shank Diameter (mm):
31.75mm
Material:
Steel
Finish/Coating:
Oxide
