Product Specifications
| # Manufacturer Number | P28152 |
| Min. Insert Diameter (Decimal Inch) | 0.8594" |
| Min.-Insert-Diameter-(Inch) | 55/64" |
| Min. Insert Diameter (mm) | 21.83mm |
| Max. Insert Diameter (Decimal Inch) | 0.9375" |
| Max. Insert Diameter (Inch) | 15/16" |
| Max. Insert Diameter (mm) | 23.81mm |
| Max Drill Depth (Decimal Inch) | 10.6300" |
| Max Drill Depth (Inch) | 10-5/8" |
| Max Drill Depth (mm) | 269.88mm |
| Flute Length (Decimal Inch) | 12.0900" |
| Flute Length (Inch) | 12-3/32" |
| Flute Length (mm) | 307.18mm |
| Overall Length (Decimal Inch) | 14.3800" |
| Overall Length (Inch) | 14-3/8" |
| Overall Length (mm) | 365.13mm |
| Reference Length (Decimal Inch) | 12.2300" |
| Reference Length (Decimal Inch) | 12-15/64" |
| Reference Length (Decimal Inch) | 310.75mm |
| Pipe Tap (Inch) | 1/8" |
| Number of Flute | 2 |
| Coating | Oxide |
| Material | Steel |
| Cutting Direction | Right |

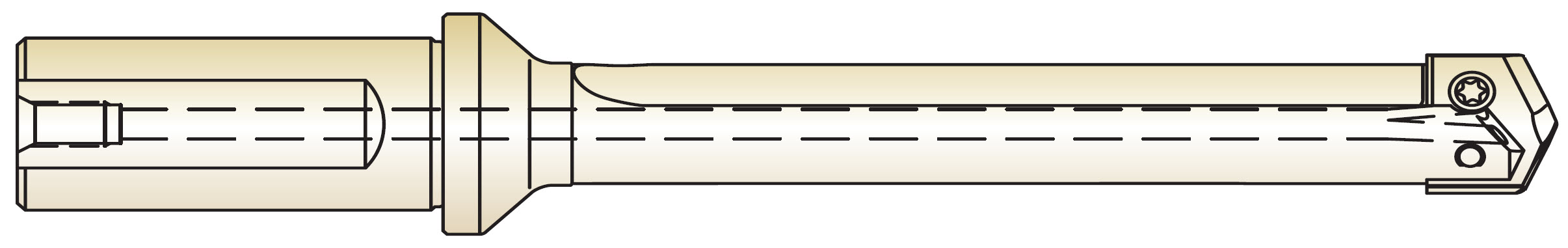

| Product Type | Spade Drill Holder |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Series:
P28
Minimum Drill Diameter (Decimal Inch):
0.8594"
Minimum Drill Diameter (Inch):
55/64"""
Minimum Drill Diameter (mm):
21.83mm
Maximum Drill Diameter (Decimal Inch):
0.9375"
Maximum Drill Diameter (Inch):
15/16"""
Maximum Drill Diameter (mm):
23.81mm
Overall Length (Inch):
14-3/8"
Overall Length (Decimal Inch):
14.3800"""
Overall Length (mm):
14.3800"
Maximum Drill Depth (Inch):
10-5/8"""
Maximum Drill Depth (Decimal Inch):
10.6300"
Maximum Drill Depth (mm):
269.88mm"
Flute Type:
Straight
Shank Type:
Flanged
Material:
Steel
Finish/Coating:
Oxide
interval quantity:
1
