Product Specifications
| EDP Number | S09106 |
| Diameter (Decimal Inch) | 0.7500" |
| Diameter (Inch) | 3/4" |
| Diameter (mm) | 19.00mm |
| Thickness (Decimal Inch) | 0.1575" |
| Thickness (Inch) | 5/32" |
| Thickness (mm) | 4.00mm |
| Insert Height (Decimal Inch) | 0.5620" |
| Insert Height (Inch) | 9/16" |
| Insert Height (mm) | 14.27mm |
| Series | S09 |
| Point Angle (Degree) | 132 Degree |
| Holder Type | Series 1 |
| Grade | T15 |
| Trade Name | YG Spade Drill Super Cobalt |
| Application | P,K |
| Coating | Hardslick |
| Material | Super Cobalt |

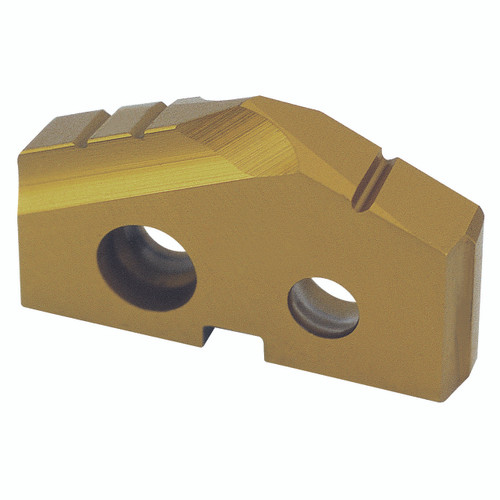

| Product Type | Spade Drill Insert |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Series:
S09
Diameter (mm):
19.00mm
Series Code/Seat Size:
Series 1
Material:
Super Cobalt
Finish/Coating:
Hardslick
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1575"
Thickness (mm):
4.00mm
Included Angle:
132 Degree
