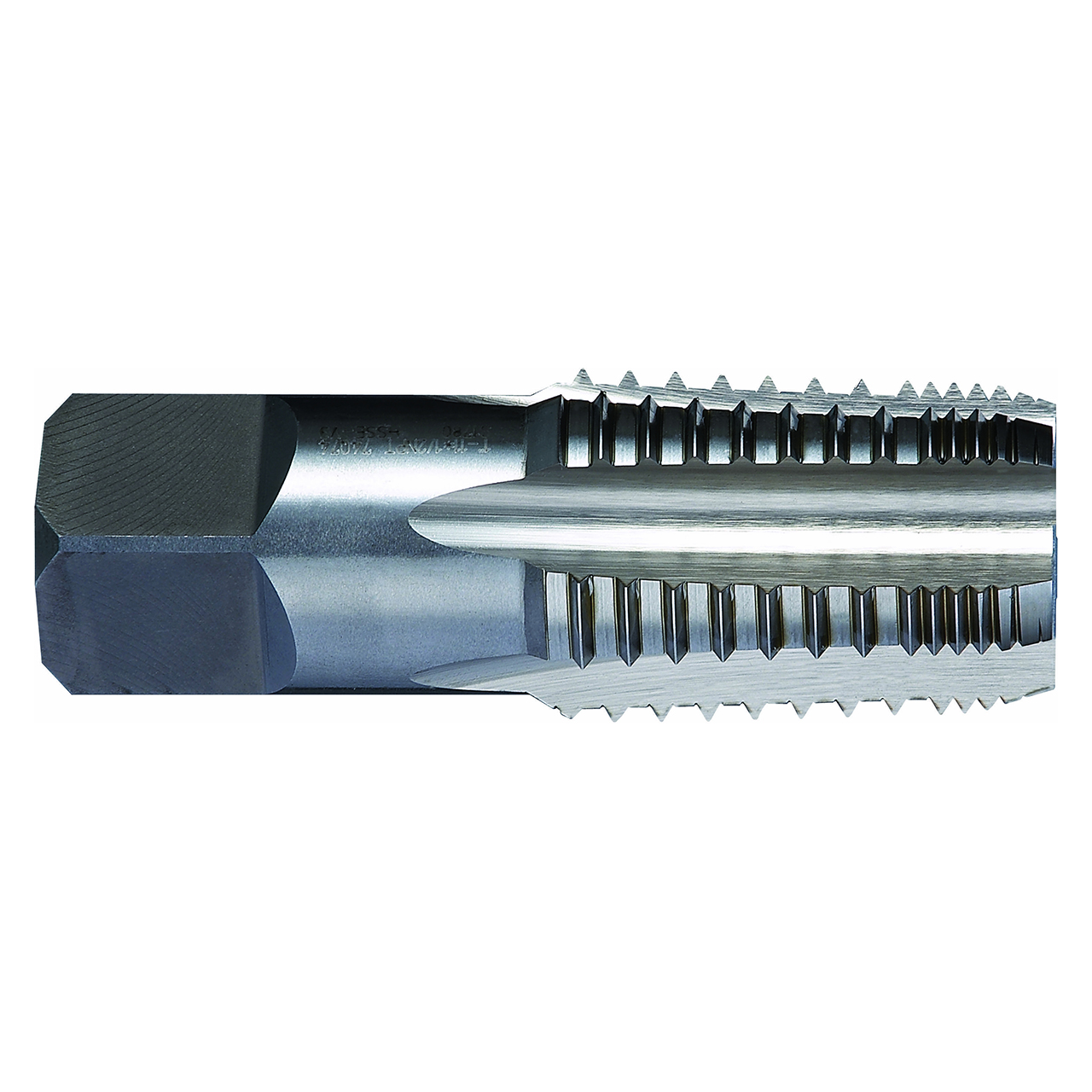

Product Specifications
| EDP Number | S2480 |
| Size | 3/8" |
| Pitch | 18 TPI |
| Diameter (Decimal Inch) | 0.3750" |
| Diameter (mm) | 9.53mm |
| Overall Length (Decimal Inch) | 2.5600" |
| Overall Length (mm) | 65.02mm |
| Thread Length (Decimal Inch) | 1.0600" |
| Thread Length (mm) | 26.92mm |
| Square Length (Decimal Inch) | 0.5000" |
| Square Length (mm) | 12.70mm |
| Shank Diameter (Decimal Inch) | 0.7000" |
| Shank Diameter (mm) | 17.78mm |
| Square Size (Decimal Inch) | 0.5310" |
| Square Size (mm) | 13.49mm |
| Drill Size (Decimal Inch) | 0.5625" |
| Drill Size (mm) | 14.29mm |
| Useable Length (Decimal Inch) | 1.0600" |
| Useable Length (mm) | 26.92mm |
| Number of Flutes | 5 |
| Series | S2 |
| Chamfer Length | 2P-3P |
| Thread Series | NPTF |
| Coating | TiCN |
| Material | HSSE-V3 |
| Blank Standard | 311 |
| Helix Angle (Degree) | 0 Degree |
| Length/Diameter | 2.0 xD |
| Chamfer Type | Modified Bottoming |
| Tap Type | NPT(F) Taper Pipe Tap |
| Shank Type | Square |
| Trade Name | YG-Pipe Taps |
| Product Type | Interrupted Thread Pipe Tap |
