Product Specifications
| EDP Number | SEMD9906015 |
| Diameter (Decimal Inch) | 0.2362" |
| Diameter (Inch) | 13/55" |
| Diameter (mm) | 6.00mm |
| Shank Diameter (Decimal Inch) | 0.2362" |
| Shank Diameter (Inch) | 13/55" |
| Shank Diameter (mm) | 6.00mm |
| Length of Cut (Decimal Inch) | 0.5906" |
| Length of Cut (Inch) | 13/22" |
| Length of Cut (mm) | 15.00mm |
| Overall Length (Decimal Inch) | 3.5433" |
| Overall Length (Inch) | 3-25/46" |
| Overall Length (mm) | 90.00mm |
| Corner Radius (Decimal Inch) | 0.0591" |
| Corner Radius (Inch) | 1/17" |
| Shank Style | Plain |
| Helix Angle (Degree) | 30 Degree |
| Coating | AlCrN |
| Number of Flutes | 2 |
| Corner Radius (mm) | 1.50mm |
| Cut Type | Center Cut |
| Corner Type | Corner Radius |
| Series | SEMD99 |
| Material | Carbide |

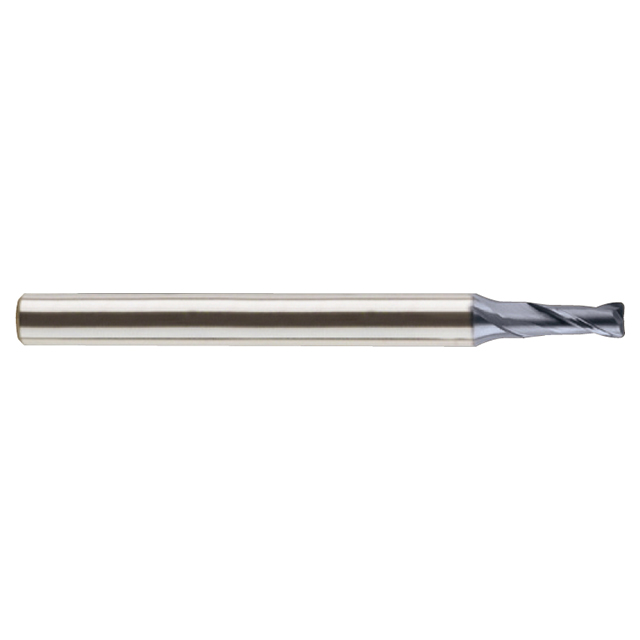

| Product Type | Corner Radius End Mill |
