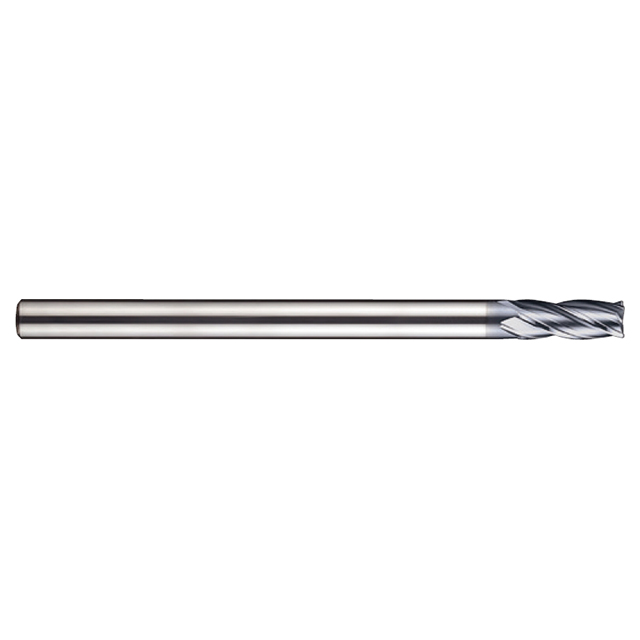

Product Specifications
| EDP Number | SEME0116015 |
| Diameter (Decimal Inch) | 0.6299" |
| Diameter (Inch) | 17/27" |
| Diameter (mm) | 16.00mm |
| Shank Diameter (Decimal Inch) | 0.6299" |
| Shank Diameter (Inch) | 17/27" |
| Shank Diameter (mm) | 16.00mm |
| Length of Cut (Decimal Inch) | 1.2598" |
| Length of Cut (Inch) | 1 20/77" |
| Length of Cut (mm) | 32.00mm |
| Overall Length (Decimal Inch) | 5.9055" |
| Overall Length (Inch) | 5-48/53" |
| Overall Length (mm) | 150.00mm |
| Corner Radius (Decimal Inch) | 0.0591" |
| Corner Radius (Inch) | 1/17" |
| Shank Style | Plain |
| Helix Angle (Degree) | Variable |
| Coating | AlCrN |
| Number of Flutes | 4 |
| Corner Radius (mm) | 1.50mm |
| Cut Type | Center Cut |
| Corner Type | Corner Radius |
| Series | SEME01 |
| Material | Carbide |
| Product Type | Corner Radius End Mill |
