Product Specifications
| EDP Number | SEME36200 |
| Diameter (Decimal Inch) | 0.7874" |
| Diameter (Inch) | 37/47" |
| Diameter (mm) | 20.00mm |
| Shank Diameter (Decimal Inch) | 0.7874" |
| Shank Diameter (Inch) | 37/47" |
| Shank Diameter (mm) | 20.00mm |
| Length of Cut (Decimal Inch) | 1.7717" |
| Length of Cut (Inch) | 1 71/92" |
| Length of Cut (mm) | 45.00mm |
| Overall Length (Decimal Inch) | 3.937" |
| Overall Length (Inch) | 3-15/16" |
| Overall Length (mm) | 100.00mm |
| Shank Style | Plain |
| Helix Angle (Degree) | Variable |
| Coating | AlCrN |
| Number of Flutes | 4 |
| Cut Type | Center Cut |
| Corner Type | Square End |
| Series | SEME36 |
| Material | Carbide |

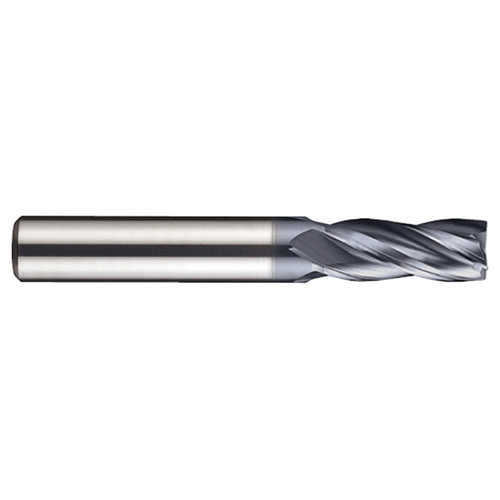

| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Number of Flutes:
4
Helix Angle:
Variable
interval quantity:
1
