Product Specifications
| EDP Number | SEME6106001 |
| Diameter (Decimal Inch) | 0.2362" |
| Diameter (Inch) | 13/55" |
| Diameter (mm) | 6.00mm |
| Shank Diameter (Decimal Inch) | 0.2362" |
| Shank Diameter (Inch) | 13/55" |
| Shank Diameter (mm) | 6.00mm |
| Length of Cut (Decimal Inch) | 0.3543" |
| Length of Cut (Inch) | 28/79" |
| Length of Cut (mm) | 9.00mm |
| Overall Length (Decimal Inch) | 2.3622" |
| Overall Length (Inch) | 2-25/69" |
| Overall Length (mm) | 60.00mm |
| Corner Radius (Decimal Inch) | 0.0039" |
| Corner Radius (Inch) | 1/254" |
| Shank Style | Plain |
| Helix Angle (Degree) | 30 Degree |
| Coating | AlCrN |
| Number of Flutes | 2 |
| Corner Radius (mm) | 0.10mm |
| Cut Type | Center Cut |
| Corner Type | Corner Radius |
| Length Type | Long Neck |
| Series | SEME61 |
| Material | Carbide |

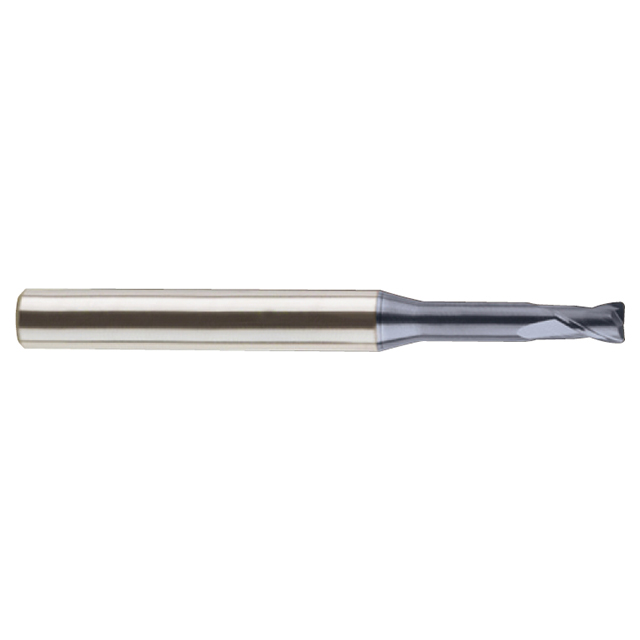

| Product Type | Corner Radius End Mill |
