Product Specifications
| EDP Number | SEME7010060 |
| Diameter (Decimal Inch) | 0.3937" |
| Diameter (Inch) | 37/94" |
| Diameter (mm) | 10.00mm |
| Shank Diameter (Decimal Inch) | 0.3937" |
| Shank Diameter (Inch) | 37/94" |
| Shank Diameter (mm) | 10.00mm |
| Length of Cut (Decimal Inch) | 2.3622" |
| Length of Cut (Inch) | 2 25/69" |
| Length of Cut (mm) | 60.00mm |
| Overall Length (Decimal Inch) | 4.3307" |
| Overall Length (Inch) | 4-1/3" |
| Overall Length (mm) | 110.00mm |
| Shank Style | Plain |
| Helix Angle (Degree) | 30 Degree |
| Coating | AlCrN |
| Number of Flutes | 2 |
| Cut Type | Center Cut |
| Corner Type | Square End |
| Length Type | Long Length |
| Series | SEME70 |
| Material | Carbide |

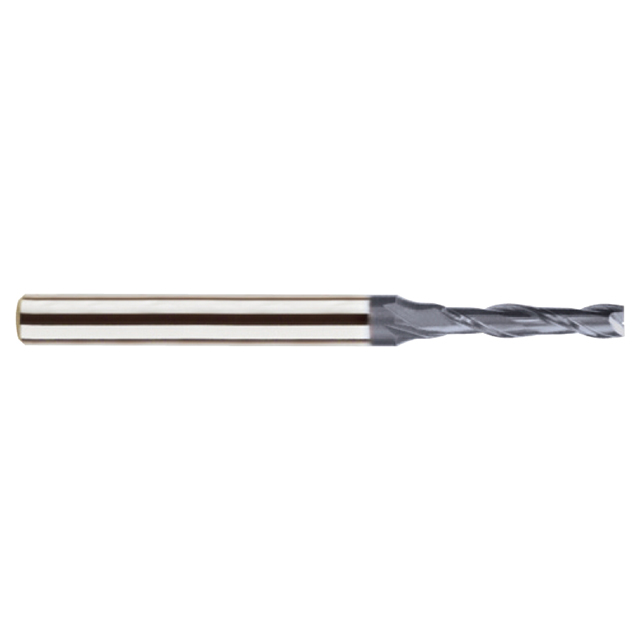

| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Number of Flutes:
2
Length of Cut (Inch):
2 25/69"
Length of Cut (Decimal Inch):
2.3622"
Length of Cut (mm):
60.00mm
Material:
Carbide
Finish/Coating:
AlCrN
Shank Diameter (Inch):
37/94"
Shank Diameter (Decimal Inch):
0.3937"
Shank Diameter (mm):
10.00mm
Overall Length (Inch):
4-1/3"
Overall Length (Decimal Inch):
4.3307"
Overall Length (mm):
110.00mm
Helix Angle:
30°
