Product Specifications
| EDP Number | SEME70250110 |
| Diameter (Decimal Inch) | 0.9843" |
| Diameter (Inch) | 62/63" |
| Diameter (mm) | 25.00mm |
| Shank Diameter (Decimal Inch) | 0.9843" |
| Shank Diameter (Inch) | 62/63" |
| Shank Diameter (mm) | 25.00mm |
| Length of Cut (Decimal Inch) | 4.3307" |
| Length of Cut (Inch) | 4 1/3" |
| Length of Cut (mm) | 110.00mm |
| Overall Length (Decimal Inch) | 7.8740" |
| Overall Length (Inch) | 7-7/8" |
| Overall Length (mm) | 200.00mm |
| Shank Style | Plain |
| Helix Angle (Degree) | 30 Degree |
| Coating | AlCrN |
| Number of Flutes | 2 |
| Cut Type | Center Cut |
| Corner Type | Square End |
| Length Type | Long Length |
| Series | SEME70 |
| Material | Carbide |

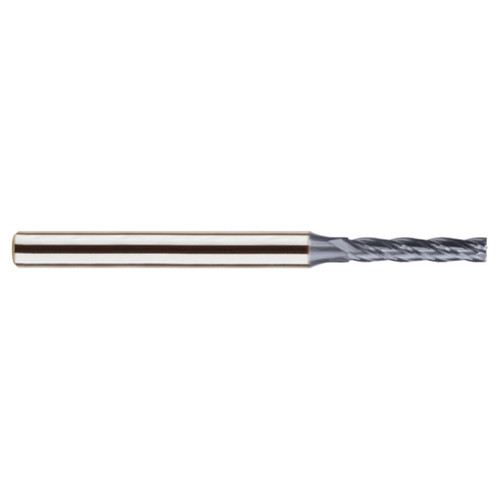

| Product Type | Square End Mill |
