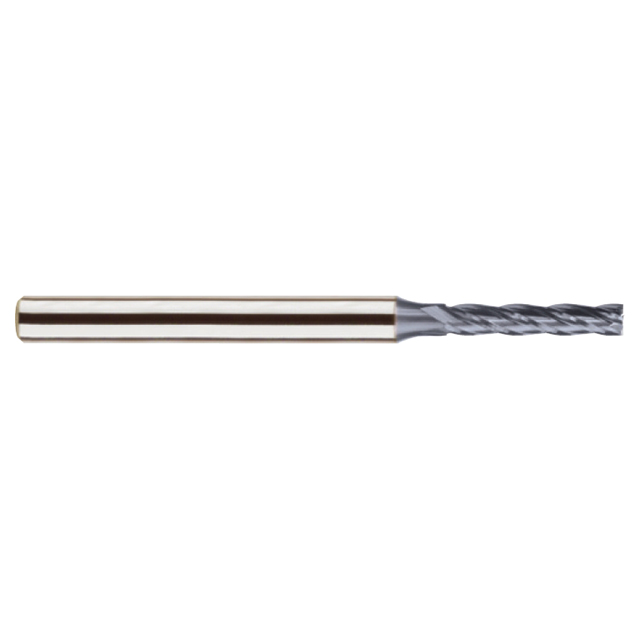

Product Specifications
| EDP Number | SEME7212060200 |
| Diameter (Decimal Inch) | 0.4724" |
| Diameter (Inch) | 43/91" |
| Diameter (mm) | 12.00mm |
| Shank Diameter (Decimal Inch) | 0.4724" |
| Shank Diameter (Inch) | 43/91" |
| Shank Diameter (mm) | 12.00mm |
| Length of Cut (Decimal Inch) | 2.3622" |
| Length of Cut (Inch) | 2 25/69" |
| Length of Cut (mm) | 60.00mm |
| Overall Length (Decimal Inch) | 7.8740" |
| Overall Length (Inch) | 7-7/8" |
| Overall Length (mm) | 200.00mm |
| Shank Style | Plain |
| Helix Angle (Degree) | 30 Degree |
| Coating | AlCrN |
| Number of Flutes | 4 |
| Cut Type | Center Cut |
| Corner Type | Square End |
| Length Type | Long Length |
| Series | SEME72 |
| Material | Carbide |
| Product Type | Square End Mill |
