Product Specifications
| EDP Number | SF05048 |
| Diameter (Decimal Inch) | 0.7500" |
| Diameter (Inch) | 3/4" |
| Diameter (mm) | 19.05mm |
| Thickness (Decimal Inch) | 0.1563" |
| Thickness (Inch) | 5/32" |
| Thickness (mm) | 3.97mm |
| Insert Height (Decimal Inch) | 0.5620" |
| Insert Height (Inch) | 9/16" |
| Insert Height (mm) | 14.27mm |
| Series | SF05 |
| Point Angle (Degree) | 180 Degree |
| Holder Type | Series 1 |
| Grade | T15 |
| Trade Name | YG Spade Drill SF Point Flat Bottom |
| Application | P,K |
| Coating | TiN |
| Material | Super Cobalt |

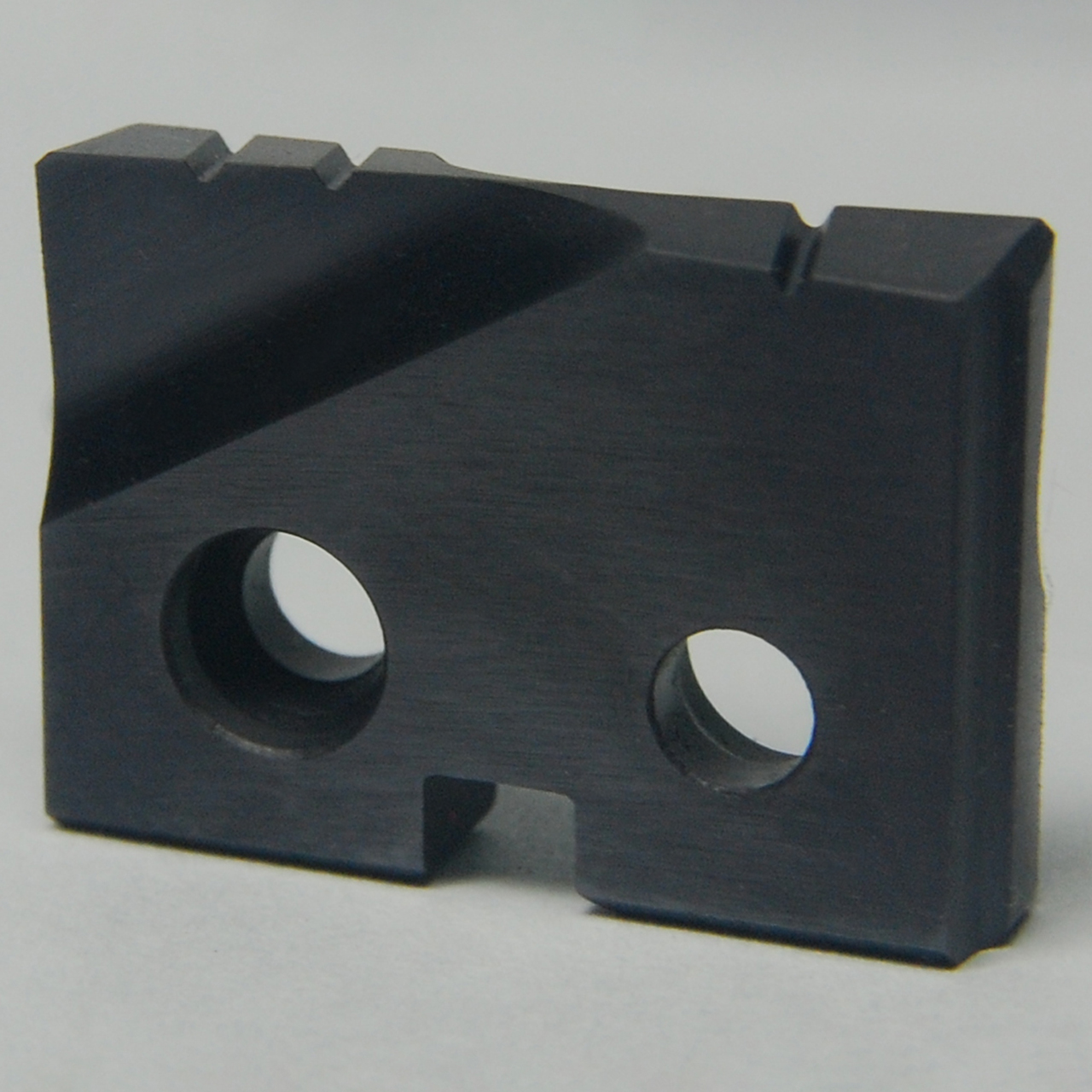

| Product Type | Flat Bottom Spade Drill Insert |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Series:
SF05
Diameter (Inch):
0.7500"
Diameter (Decimal Inch):
3/4"
Diameter (mm):
19.05mm
Series Code/Seat Size:
Series 1
Material:
Super Cobalt
Finish/Coating:
TiN
Thickness (Inch):
5/32"
Thickness (Decimal Inch):
0.1563"
Thickness (mm):
3.97mm
Included Angle:
180 Degree
