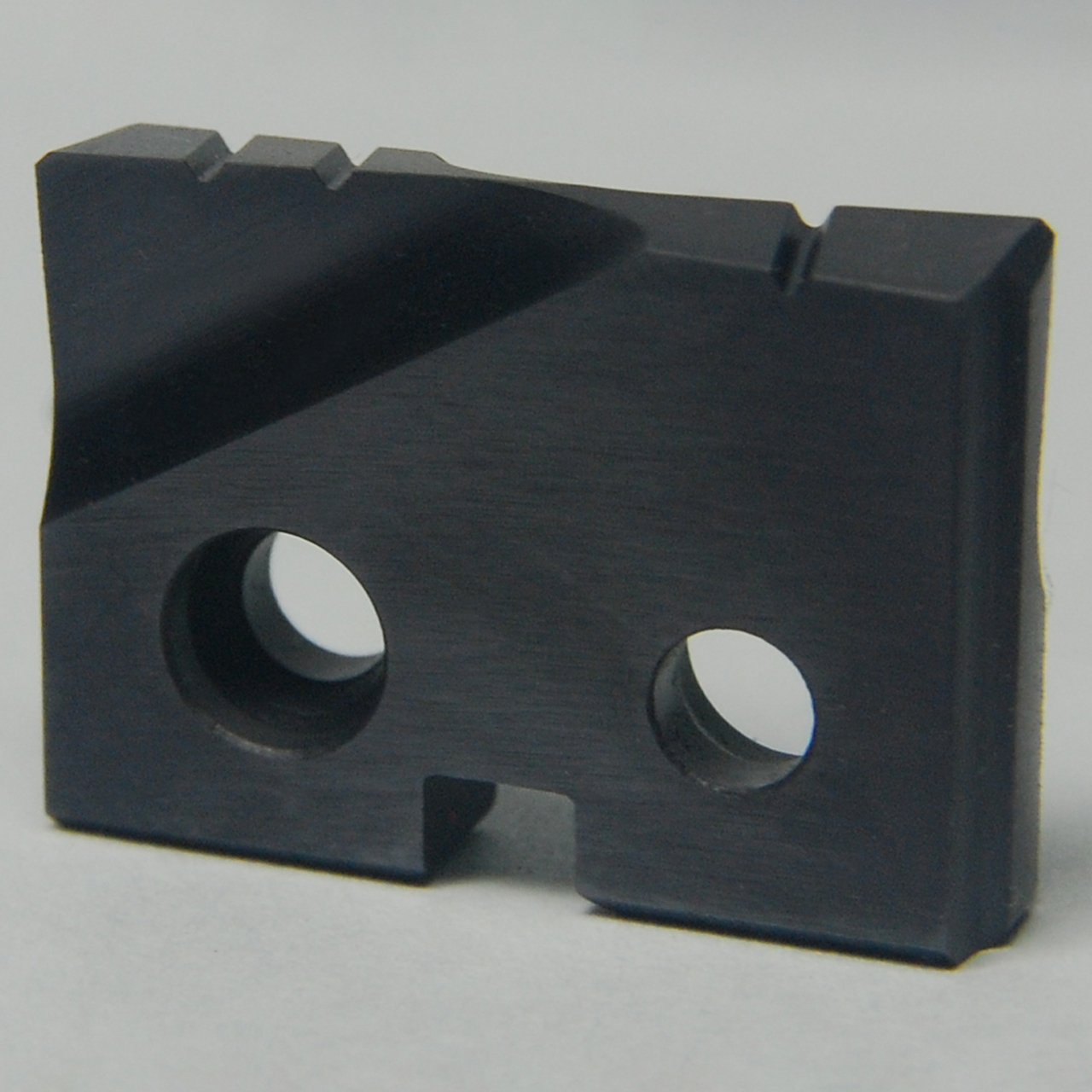

YG1 SF15116 | 1.2500" Diameter x 0.1875" Thickness 180 Degree Included Angle TiAlN Coated SF15 Series Flat Bottom Spade Drill Insert

$59.12
Brand:
YG1
Series:
SF15
Diameter (Inch):
1.2500"
Diameter (Decimal Inch):
1-1/4"
Diameter (mm):
31.75mm
Series Code/Seat Size:
Series 2
Material:
Super Cobalt
Finish/Coating:
TiAlN
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1875"
Thickness (mm):
4.76mm
Included Angle:
180 Degree
SKU:
23015309
Weight:
0.04 LBS
Shipping:
Calculated at Checkout

Product Specifications
EDP NumberSF15116
Diameter (Decimal Inch)1.2500"
Diameter (Inch)1-1/4"
Diameter (mm)31.75mm
Thickness (Decimal Inch)0.1875"
Thickness (Inch)3/16"
Thickness (mm)4.76mm
Insert Height (Decimal Inch)0.6410"
Insert Height (Inch)25/39"
Insert Height (mm)16.28mm
SeriesSF15
Point Angle (Degree)180 Degree
Holder TypeSeries 2
GradeT15
Trade NameYG Spade Drill SF Point Flat Bottom
ApplicationP,K
CoatingTiAlN
MaterialSuper Cobalt
Product TypeFlat Bottom Spade Drill Insert
