Product Specifications
| Diameter (Decimal Inch) | ST542 |
| Diameter (Decimal Inch) | 0.5052" |
| Diameter (mm) | 12.83mm |
| Overall Length (Decimal Inch) | 3.3800" |
| Overall Length (mm) | 85.85mm |
| Thread Length (Decimal Inch) | 0.9840" |
| Thread Length (mm) | 24.99" |
| Square Length (Decimal Inch) | 0.9840" |
| Square Length (mm) | 24.99" |
| Shank Diameter (Decimal Inch) | 0.3670" |
| Shank Diameter (mm) | 9.32mm |
| Square Size (Decimal Inch) | 0.2750" |
| Square Size (mm) | 6.99mm |
| Neck Diameter (Decimal Inch) | 0.3540" |
| Neck Diameter (mm) | 8.99mm |
| Drill Size (Decimal Inch) | 0.4528" |
| Drill Size (mm) | 11.50mm |
| Useable Length (Decimal Inch) | 1.6600" |
| Useable Length (mm) | 42.16mm |
| Length/Diameter | 3.0xD |
| Coolant Through | No |
| Tap Type | SPPT |
| Number Of Flutes | 3 |
| Size | 7/16 |
| Pitch | 20 TPI |
| Thread Series | UNF |
| Thread Class | 2B |
| Chamfer Type | Bottoming |
| Chamfer Length | 1.5P-2P |
| Finish | Hardslick |
| Material | HSSE-V46 |
| Blank Standard | 322 |
| Helix Angle | 40 Degree |

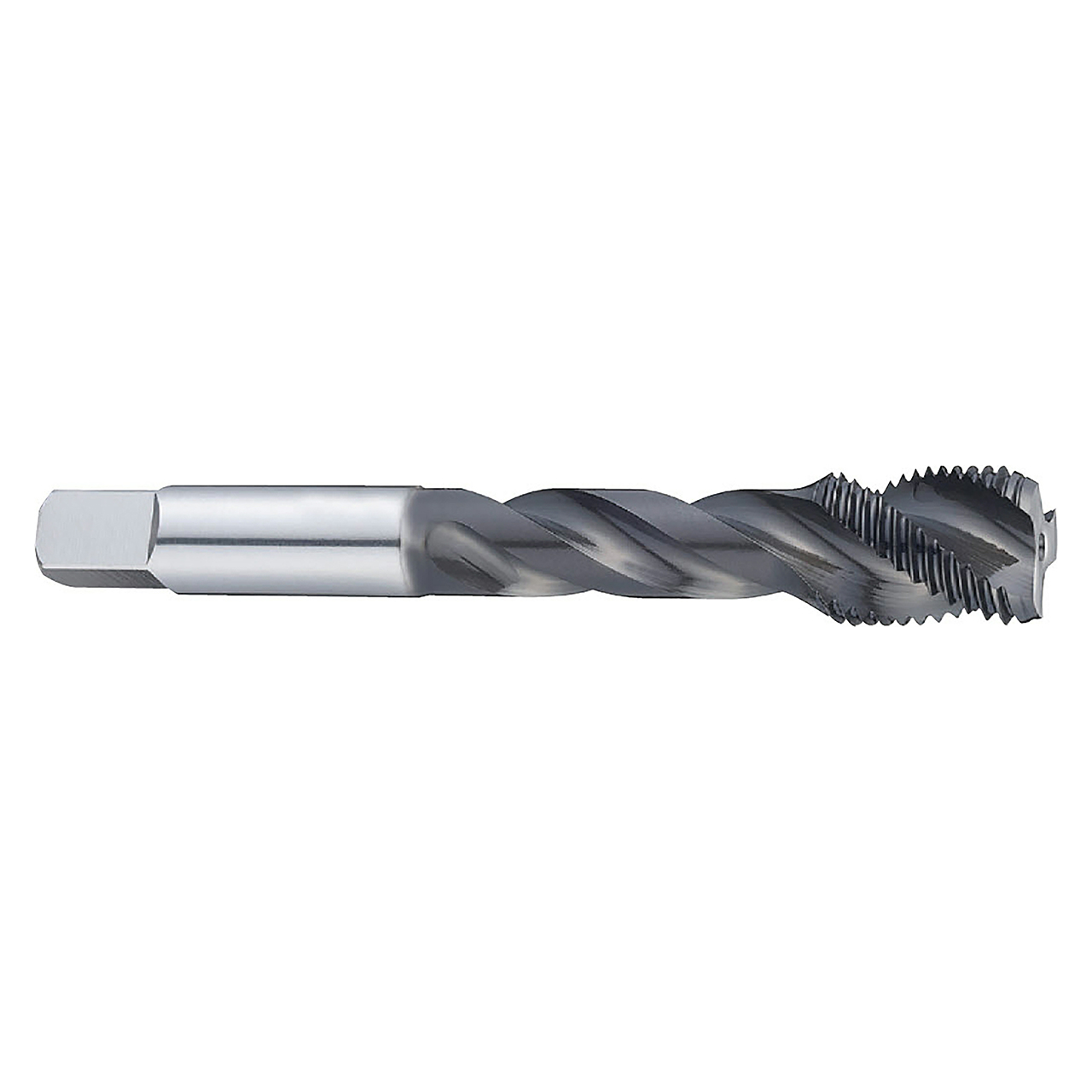

| Product Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Number of Flutes:
3
Chamfer:
Bottoming
Material:
HSSE-V46
Finish/Coating:
Hardslick
Through Coolant:
No
