Product Specifications
| EDP Number | SV520138 |
| Diameter (Decimal Inch) | 1.5900" |
| Diameter (Inch) | 1-19/32" |
| Diameter (mm) | 40.48mm |
| Thickness (Decimal Inch) | 0.2500" |
| Thickness (Inch) | 1/4" |
| Thickness (mm) | 6.40mm |
| Insert Height (Decimal Inch) | 0.8125" |
| Insert Height (Inch) | 13/16" |
| Insert Height (mm) | 20.60mm |
| Series | SV520 |
| Point Angle (Degree) | 132 Degree |
| Holder Type | 3 |
| Grade | M48 |
| Trade Name | SV Point |
| Application | P,K |
| Coating | Hardslick |
| Material | Premium Cobalt |

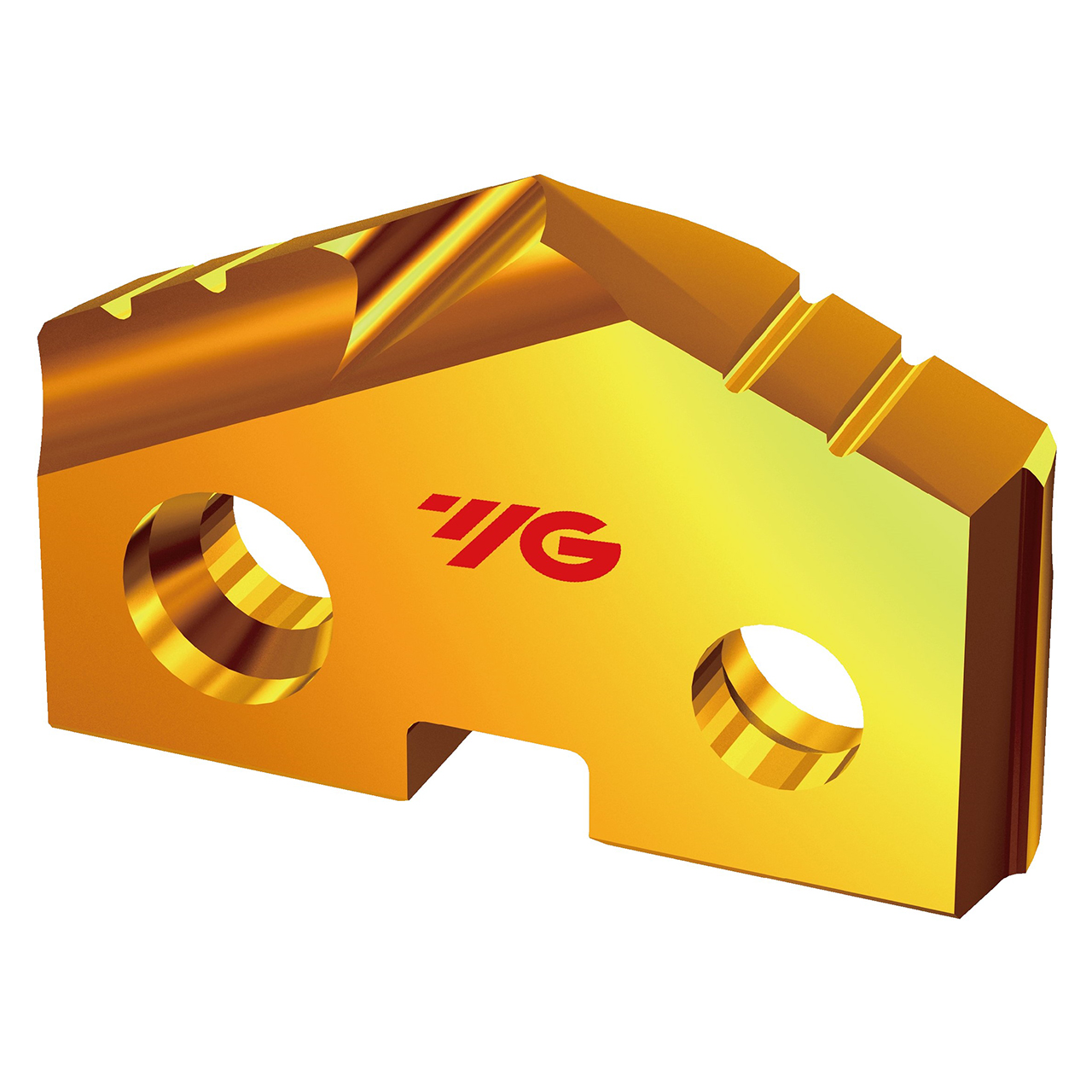

| Product Type | Spade Drill Insert |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Series:
SV520
Diameter (mm):
40.48mm
Series Code/Seat Size:
3
Material:
Premium Cobalt
Finish/Coating:
Hardslick
Thickness (Inch):
1/4"
Thickness (Decimal Inch):
0.2500"
Thickness (mm):
6.40mm
Included Angle:
132 Degree
