Product Specifications

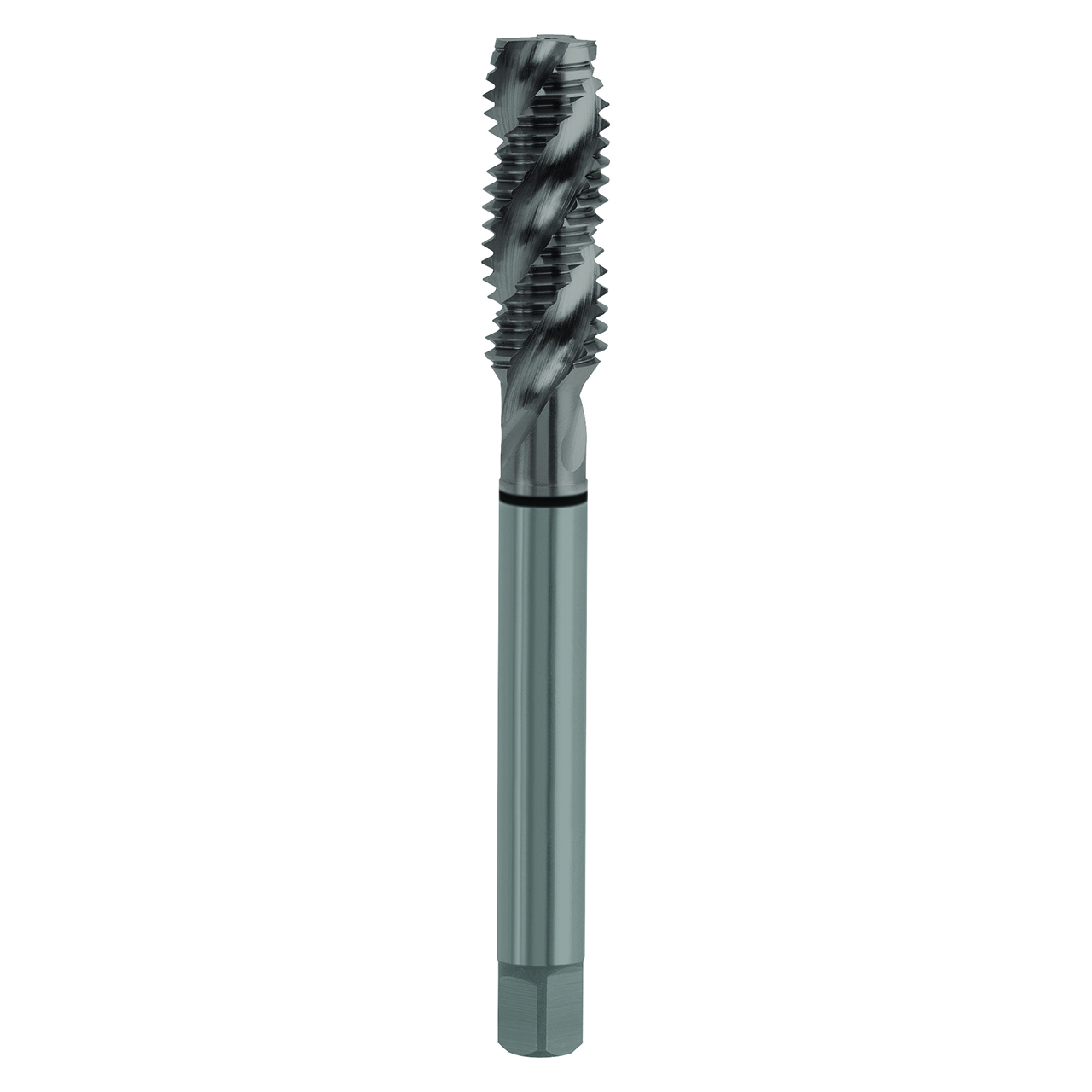

| EDP Number | T2343S |
| Size & Pitch | #10-32 |
| Diameter (Decimal Inch) | 0.1900" |
| Diameter (mm) | 4.83mm |
| Overall Length (Decimal Inch) | 2.3800" |
| Length/Diameter | 2.5xD |
| Chamfer Type | Modified Bottoming |
| Overall Length (mm) | 60.45mm |
| Thread Length (Decimal Inch) | 0.2760" |
| Thread Length (mm) | 7.01mm |
| Square Length (Decimal Inch) | 0.2500" |
| Square Length (mm) | 6.35mm |
| Shank Diameter (Decimal Inch) | 0.1940" |
| Shank Diameter (mm) | 4.93mm |
| Square Size (Decimal Inch) | 0.1520" |
| Square Size (mm) | 3.86mm |
| Neck Diameter (Decimal Inch) | 0.1460" |
| Connection (mm) | 4.93 x 3.86mm |
| Connection (Decimal Inch) | 0.194 x 0.152" |
| Useable Length (Decimal Inch) | 0.9060" |
| Neck Diameter (mm) | 3.71mm |
| Drill Size (Decimal Inch) | 0.1616" |
| Drill Size (mm) | 4.10mm |
| Useable Length (mm) | 23.01mm |
| Thread Series | UNF |
| Pitch Limit | H3 |
| Chamfer Length | 2P-3P |
| Finish | Oxide |
| Blank Standard | 302A |
| Helix Angle (Degree) | 40 Degree |
| Number of Flutes | 3 |
| Tap Type | SPFL |
| Shank Type | Square |
| Coolant Through | No |
| Ring Color | Black |
| Trade Name | Combo Tap |
| Series | T2-S |
| Material | HSS-EX |
| Product Type | Spiral Flute Bottom Tap |
