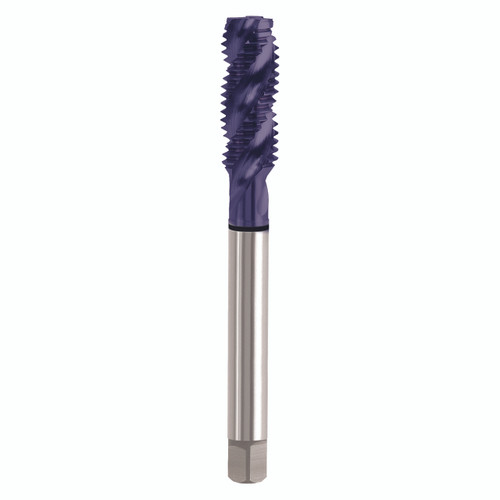

Product Specifications
| EDP Number | T4262C |
| Size & Pitch | #6-40 |
| Diameter (Decimal Inch) | 0.1380" |
| Diameter (mm) | 3.51mm |
| Overall Length (Decimal Inch) | 2.0000" |
| Length/Diameter | 3.0xD |
| Chamfer Type | Plug |
| Overall Length (mm) | 50.80mm |
| Thread Length (Decimal Inch) | 0.4130" |
| Thread Length (mm) | 10.49mm |
| Square Length (Decimal Inch) | 0.1900" |
| Square Length (mm) | 4.83mm |
| Shank Diameter (Decimal Inch) | 0.1410" |
| Shank Diameter (mm) | 3.58mm |
| Square Size (Decimal Inch) | 0.1100" |
| Square Size (mm) | 2.79mm |
| Neck Diameter (Decimal Inch) | 0.0940" |
| Connection (mm) | 3.58 x 2.79mm |
| Connection (Decimal Inch) | 0.141 x 0.11" |
| Useable Length (Decimal Inch) | 0.6890" |
| Neck Diameter (mm) | 2.39mm |
| Drill Size (Decimal Inch) | 0.1153" |
| Drill Size (mm) | 2.93mm |
| Useable Length (mm) | 17.50mm |
| Thread Series | UNF |
| Pitch Limit | H2 |
| Chamfer Length | 4P-5P |
| Finish | TICN |
| Blank Standard | 302A |
| Helix Angle (Degree) | 0 Degree |
| Number of Flutes | 3 |
| Tap Type | SPPT |
| Shank Type | Square |
| Coolant Through | No |
| Ring Color | Black |
| Trade Name | Combo Tap |
| Series | T4-C |
| Material | HSS-EX |
| Product Type | Spiral Flute Bottom Tap |
