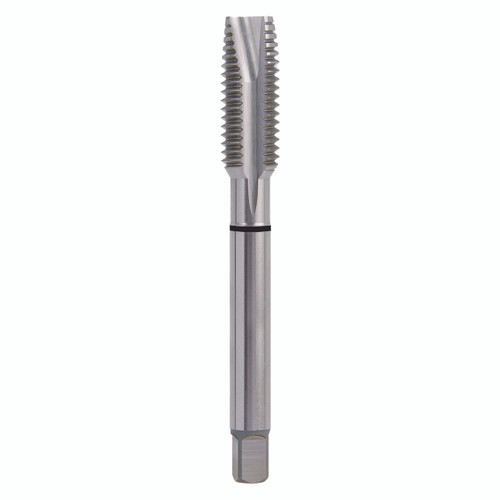

Product Specifications
| EDP Number | T4363C |
| Size & Pitch | #12-24 |
| Diameter (Decimal Inch) | 0.2160" |
| Diameter (mm) | 5.49mm |
| Overall Length (Decimal Inch) | 2.3800" |
| Length/Diameter | 3.0xD |
| Chamfer Type | Plug |
| Overall Length (mm) | 60.45mm |
| Thread Length (Decimal Inch) | 0.5710" |
| Thread Length (mm) | 14.5mm |
| Square Length (Decimal Inch) | 0.2800" |
| Square Length (mm) | 7.11mm |
| Shank Diameter (Decimal Inch) | 0.2200" |
| Shank Diameter (mm) | 5.59mm |
| Square Size (Decimal Inch) | 0.1650" |
| Square Size (mm) | 4.19mm |
| Neck Diameter (Decimal Inch) | 0.1570" |
| Connection (mm) | 5.59 x 4.19mm |
| Connection (Decimal Inch) | 0.22 x 0.165" |
| Useable Length (Decimal Inch) | 0.9060" |
| Neck Diameter (mm) | 3.99mm |
| Drill Size (Decimal Inch) | 0.1781" |
| Drill Size (mm) | 4.52mm |
| Useable Length (mm) | 23.01mm |
| Thread Series | UNC |
| Pitch Limit | H3 |
| Chamfer Length | 4P-5P |
| Finish | TICN |
| Blank Standard | 302A |
| Helix Angle (Degree) | 0 Degree |
| Number of Flutes | 3 |
| Tap Type | SPPT |
| Shank Type | Square |
| Coolant Through | No |
| Ring Color | Black |
| Trade Name | Combo Tap |
| Series | T4-C |
| Material | HSS-EX |
| Product Type | Spiral Flute Bottom Tap |
