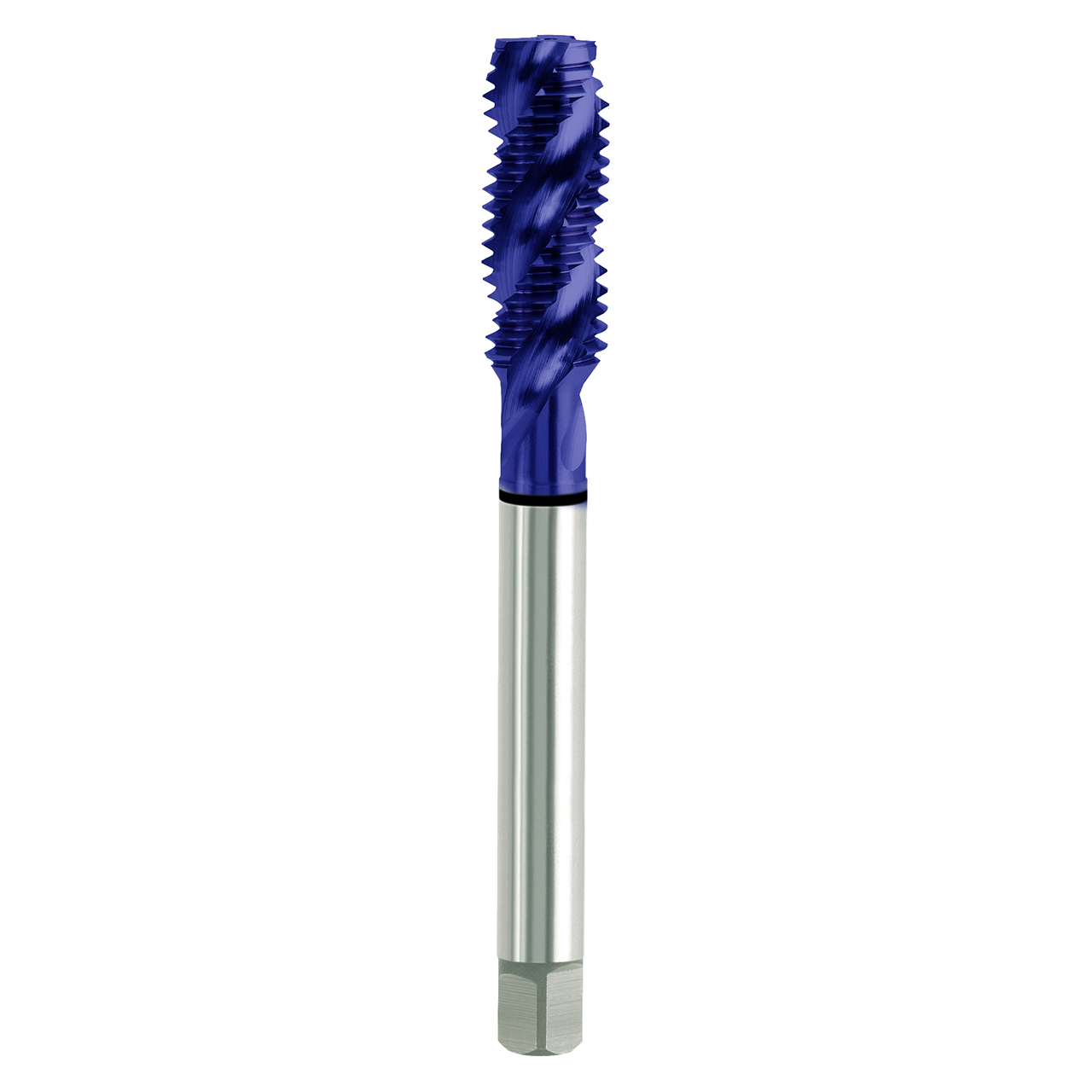

YG1 T5284C | M5x0.8 Size 0.1969" Diameter x 0.1940" Shank x 2.3800" OAL 3 Flute TICN Coated HSS-EX Spiral Flute Bottom Tap

$20.36 $14.66
(You save $5.70)
Ships:
Same Business Day if Ordered by 12:30PM PT
Brand:
YG1
Thread Size (mm):
M5 x 0.8
Thread Limit:
D4
Number of Flutes:
3
Material:
High Speed Steel
Finish/Coating:
TiCN
Through Coolant:
No
Ships:
Same Business Day if Ordered by 12:30PM PT
SKU:
15000209
UPC:
650229429122
Weight:
0.02 LBS
Shipping:
Calculated at Checkout

Features

  • Manufacturer Part # T5284C
  • Weight: 0.2 lbs
  • High vanadium HSS spiral flute combo tap, TiCN coated, round shank with square end
  • Specifications: size: M5x0.8, D limit: D4, overall length: 2.38", thread length: .354", shank diameter: .194", square size: .152", square length: .25", no. of flutes: 3
  • Reduces tap breakage, ensures accurate thread depth
  • Eliminates loose threads due to tap overfeeding
  • Improves thread quality and chip evacuation
  • Allows tapping of many metals including statinless steels and steels
  • Eliminates "bird nests" around shank of tap
  • TiCN coated for improved performance and tool life in harder materials or high temperature applications
