Product Specifications

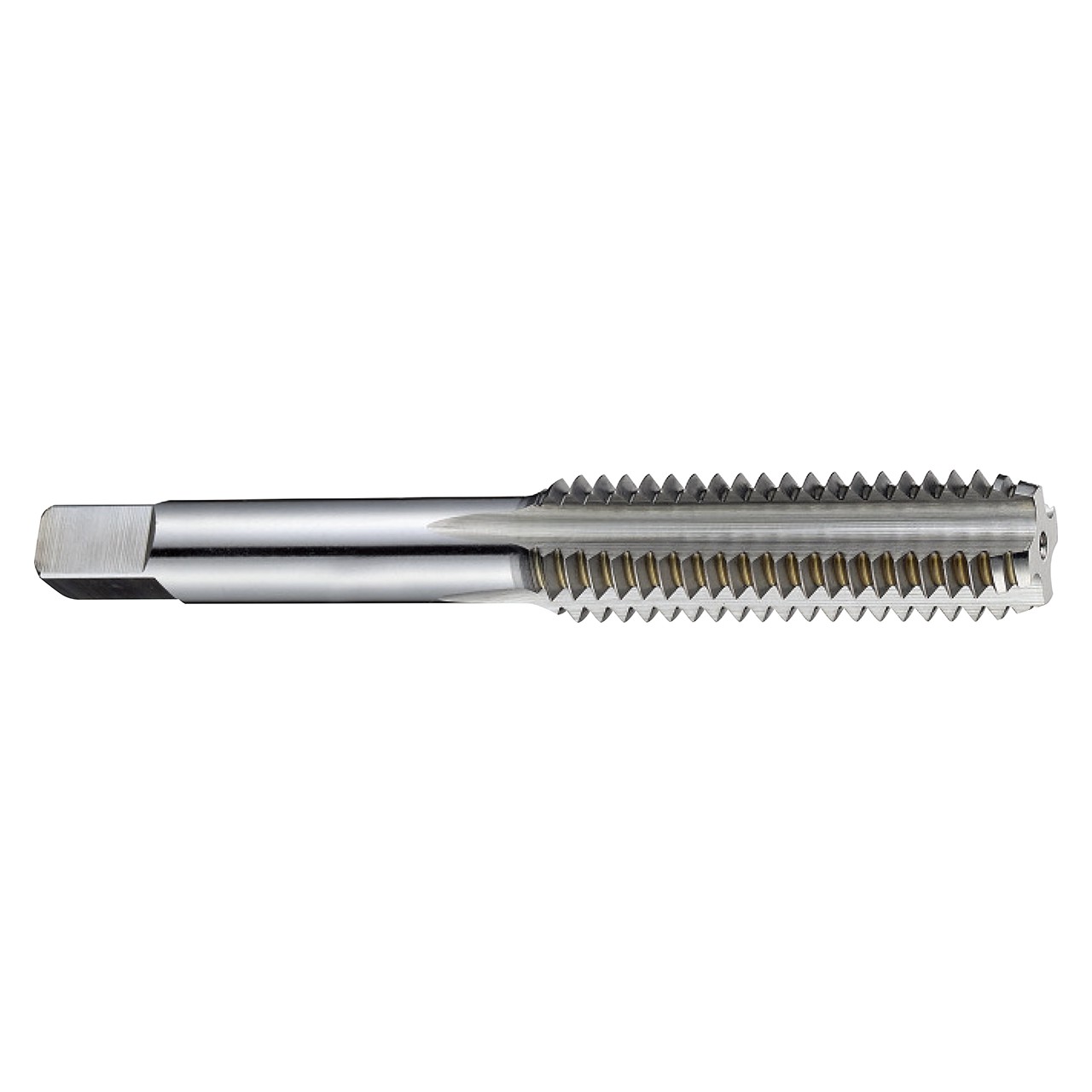

| Manufacturer Part Number | T6316288 |
| Diameter (Decimal Inch) | 0.1640" |
| Diameter (mm) | 4.17mm |
| OAL (Decimal Inch) | 2.1300" |
| OAL (mm) | 54.10mm |
| Thread Length (Decimal Inch) | 0.7500" |
| Thread Length (mm) | 19.05mm |
| Square Length (Decimal Inch) | 0.2500" |
| Square Length (mm) | 6.35mm |
| Shank Diameter (Decimal Inch) | 0.1680" |
| Shank Diameter (mm) | 4.30mm |
| Square Size (Decimal Inch) | 0.1310" |
| Square Size (mm) | 3.33mm |
| Drill Size (Decimal Inch) | 0.1356" |
| Drill Size (mm) | 3.44mm |
| Useable Length (Decimal Inch) | 0.7500" |
| Useable Length (mm) | 19.05mm |
| Length/Diameter | 2xD |
| Number of Flutes | 4 |
| Thread Diameter (Inch) | #8 |
| Thread Pitch | 32 TPI |
| Series | T6316 |
| Thread Series | UNC |
| Pitch Limit | H3 |
| Chamfer Length | 1.5P-2P |
| Shank Type | Square |
| Chamfer Type | Bottoming |
| Helix Angle | 0 Degree |
| Finish | Oxide |
| Material | HSS |
| Blank Standard | 302 |
| Tap Type | Hand |
