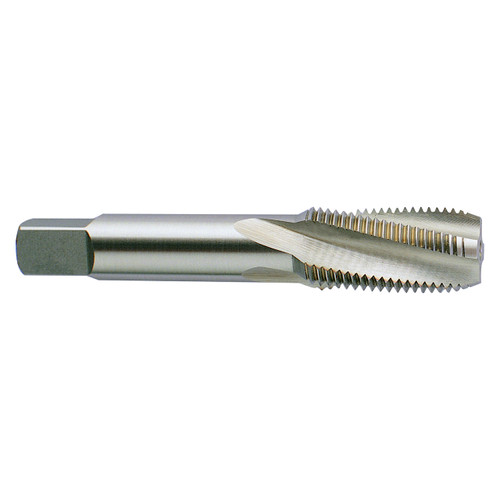

Product Specifications
| EDP Number | T6505780 |
| Size | 1" |
| Pitch | 11-1/2" |
| Diameter (Decimal Inch) | 1.0000" |
| Diameter (mm) | 25.40mm |
| Overall Length (Decimal Inch) | 3.7500" |
| Overall Length (mm) | 95.25mm |
| Thread Length (Decimal Inch) | 1.7500" |
| Thread Length (mm) | 44.45mm |
| Square Length (Decimal Inch) | 0.8100" |
| Square Length (mm) | 20.57mm |
| Shank Diameter (Decimal Inch) | 1.1250" |
| Shank Diameter (mm) | 28.58mm |
| Square Size (Decimal Inch) | 0.8430" |
| Square Size (mm) | 21.41mm |
| Drill Size (Decimal Inch) | 1.1406" |
| Drill Size (mm) | 28.97mm |
| Useable Length (Decimal Inch) | 1.7500" |
| Useable Length (mm) | 44.45mm |
| Number of Flutes | 5 |
| Series | T8546 |
| Chamfer Length | 2P-3P |
| Thread Series | NPT |
| Coating | Steam Oxide |
| Material | HSS |
| Blank Standard | 311 |
| Helix Angle (Degree) | 0 Degree |
| Length/Diameter | 2.0 xD |
| Chamfer Type | Modified Bottoming |
| Tap Type | NPT Taper Pipe Tap |
| Shank Type | Square |
| Trade Name | YG-Pipe Taps |
| Product Type | Interrupted Thread Pipe Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Brand:
YG1
Thread Size (Inch):
1"
Thread Size (Decimal Inch):
1.0000"
Thread Size (mm):
25.40mm
Thread Standard:
NPT
Material:
HSS
Finish/Coating:
Steam Oxide
Number of Flutes:
5
Chamfer:
2P-3P
